Memtrex MP-E (MMP-E) filters (Figure 1) incorporate a modified asymmetric Polyethersulfone membrane with polypropylene supports and hardware for enhanced service life and cleanliness in UPDI water and other microelectronics applications.The Electronics (E) Grade Memtrex-MP-E filters are manufactured utilizing a high-purity rinse on each and every filter to reduce TOC and trace metals below 5.0 ppb. This is ideal for final filtration on Dl water pads and POU applications. These filters are also 100% integrity-tested to ensure reliable particle retention.The MMP-E filter is just one example of our strong commitment to the electronics industry. Our complete portfolio includes filters for every stage of processing, and we offer custom solutions for your unique applications. GE Water & Process Technologies is your complete source for filters, crossflow membranes, housings and other filtration equipment.
Product Specifications
Additional Information 0
Memtrex-MP-E filters with polypropylene components may be autoclaved (121ºC, 30 minute cycles) or in situ steam sterilized (125ºC, 30 minute cycles) for a maximum accumulated exposure of 10 hours. Memtrex-MP-E filters with polyethylene hardware must not be autoclaved or in situ steam sterilized. Alternatively, the filters may be sanitized with compatible chemical agents.The component materials of Memtrex-MP-E filters are suitable for use in articles intended for repeated food contact as specified in the United States Code of Federal Regulations, Title 21. Memtrex-MP-E filters meet the test criteria for USP24 class VI-121ºC Plastics and pass the MEM Elution Cytotoxicity Test.Aqueous extracts from Memtrex-MP-E filters contain less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues. The filters rinse to less than 5 ppb TOC and less than 5 ppb trace metals in 25 min at 2.5 gpm per 10" module in UPDI water.
Dimensions Effective Filtration Area
8 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

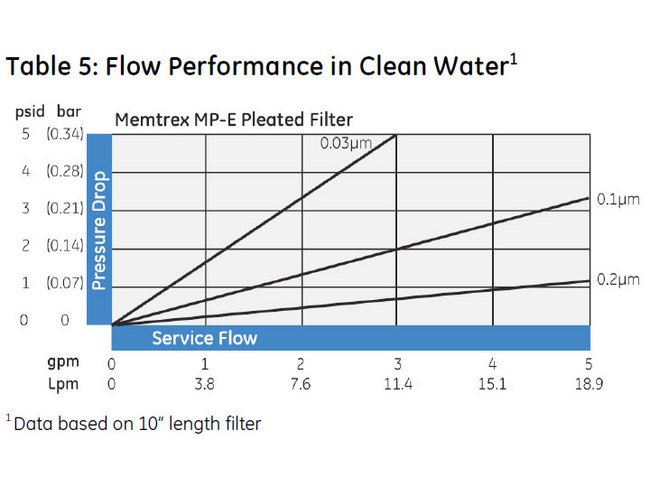

Memtrex MP-E filters are available the following absolute pore size micron ratings: 0.03, 0.1 and 0.2 µm. Tables 1, 2, 3, 4 and 5 show further details on materials of construction, dimensions, operational limits, integrity testing and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Media Material
Hydrophilic Polyethersulfone Membrane
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 07 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Absolute Micron Rating
0.2 µm
Specifications Elastomer Material
Buna-N | EPDM | Silicone | Viton
Specifications End 1 Adapter
020 O-Ring
Specifications End 2 Adapter
Open End Gasket
Specifications Grade
Electronic
Specifications Integrity Testing
≤ 19 cc/min at 30 psig | ≤ 19 cc/min at 2.1 bar
Specifications Nominal Cartridge Length
40 in | 102 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
MMP
Applications 0
Memtrex-MP-E filters are specifically designed for the filtration of ultrapure semiconductor water. Typical applications include:UPDI Water PadHigh Purity ChemicalsPoint of Use Applications
