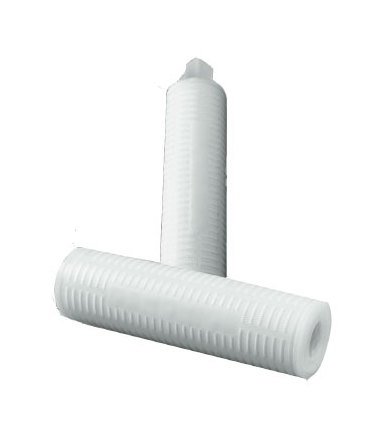

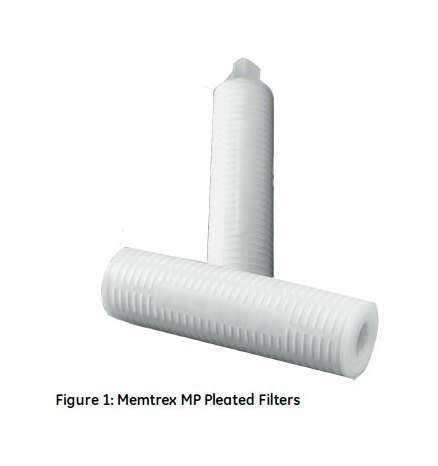

Memtrex MP (MMP) filters (Figure 1), constructed with hydrophilic polyethersulfone membranes and all polypropylene components, exhibit both enhanced throughput and reliable particle retention for superior performance in most applications. MMP filters are compatible with a broad range of chemicals and pH extremes. The low protein binding characteristics of the polyethersulfone membranes ensure that MMP filters are suitable in a variety of beverage, chemical and pharmaceutical applications. Constructed using thermal welding techniques, the MMP filters do not contain any adhesives or additives, and individual integrity testing assures that MMP filters meet the exacting performance requirements of our customers.The MMP filter is just one example of our dedicated commitment to fluid filtration. Our extensive portfolio includes filters for every stage of processing, and we can offer custom solutions for your unique applications. GE Water & Process Technologies is your complete source for filters, housings, and other filtration equipment.
Product Specifications
Additional Information 0
Memtrex MP filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC], 30-minute cycles) for a maximum accumulated exposure of 10 hours. Filters which are steam sterilized must have stainless steel insert supported o-ring adaptors. Alternatively, the filters may be sanitized with compatible chemical agents.GE certifies that the material contained in its Memtrex MP pleated filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Memtrex MP filters meet the test criteria for USP class VI-121ºC PlasticsAqueous extracts from Memtrex MP filters contain less than 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Dimensions Effective Filtration Area
8 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

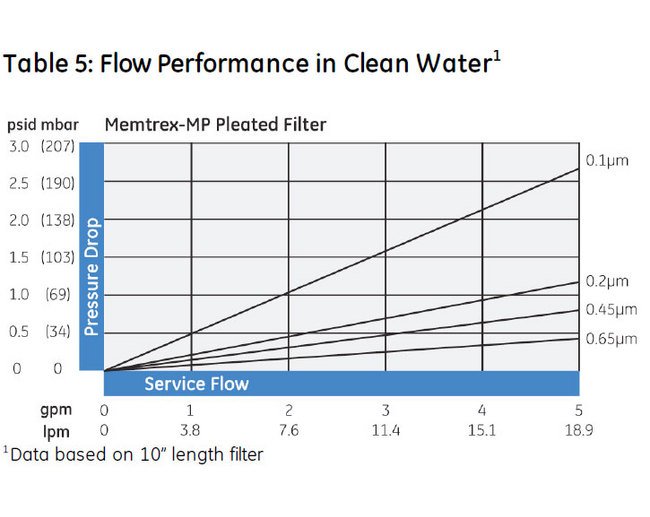

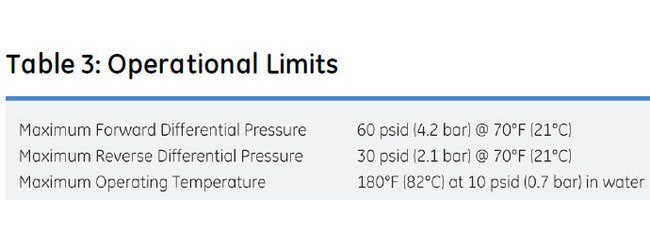

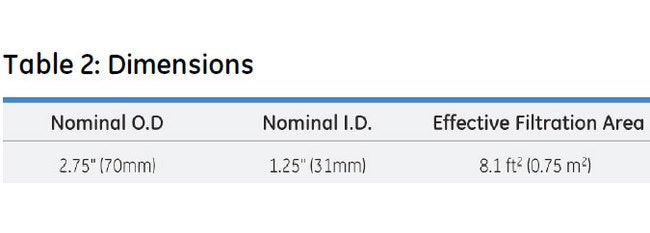

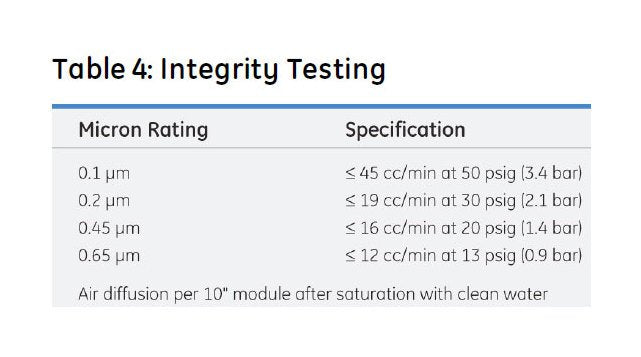

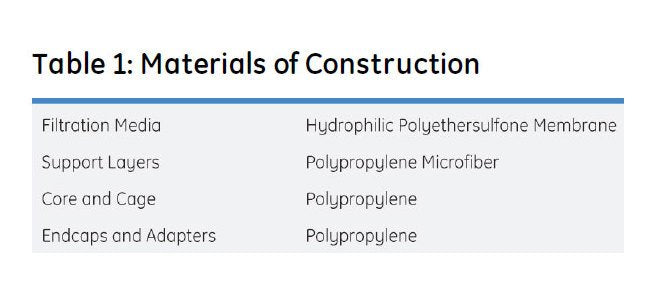

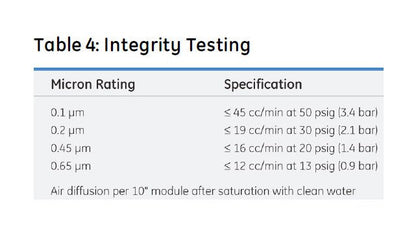

Memtrex MP filters are available the following absolute pore size micron ratings: 0.1, 0.2, 0.45 and 0.65 µm. Tables 1, 2, 3, 4 and 5 show further details on materials of construction, dimensions, operational limits, integrity testing and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene
Materials Of Construction Filtration Media
Hydrophilic Polyethersulfone Membrane
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psid | 4.2 bar
Operational Limits Maximum Operating Temperature At 10 Psid 07 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psid | 2.1 bar
Specifications Absolute Micron Rating
0.1 µm
Specifications Elastomer Material
Buna-N | EPDM | PTFE Encapsulated Viton | Silicone | Viton
Specifications End 1 Adapter
226 O-Ring Stainless Steel Support Ring
Specifications End 2 Adapter
Open End Gasket
Specifications Integrity Testing
≤ 45 cc/min at 50 psig | ≤ 45 cc/min at 3.4 bar
Specifications Nominal Cartridge Length
10 in | 25 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Applications 0
MMP filters are suitable for a broad range of applications, including filtration of:Inks and dyesAcids, bases, and oxidantsProcess waterPharmaceutical preparationsSerums and tissue culture media
