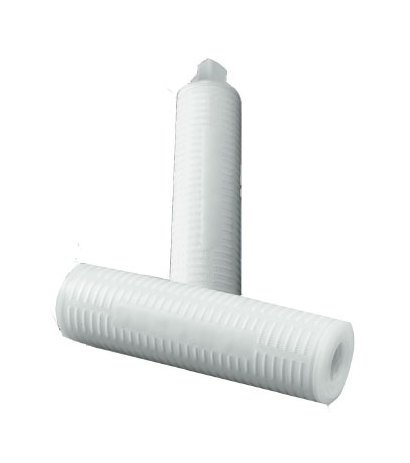

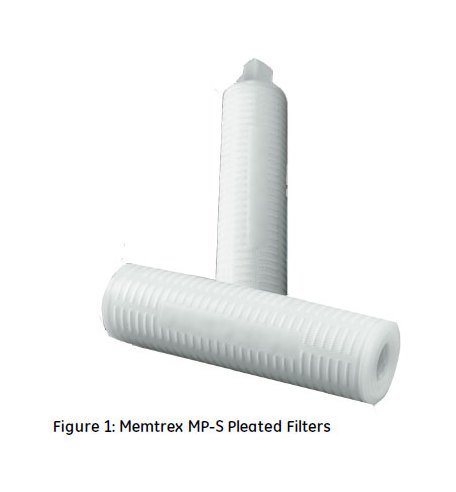

Our commitment to validation is based upon the FDA Guidelines that we establish documented evidence of assurance that a specific process will consistently produce a product meeting its predetermined specification and quality attributes. Memtrex MP-S (MMPS) filters (Figure 1) are designed for final sterile filtration of biological and pharmaceutical products. The double-layer PES membrane provides low protein-binding, high throughput, broad chemical compatibility, and reliable bacteria retention for your critical filtration processes.A detailed Validation Guide is available from GE Water & Process Technologies to document our rigorous testing for your records and reviews. The guide includes all the data necessary to assist the user with compliance to regulatory requirements.The MMP-S filter is just one example of our strong commitment to the pharmaceutical industry. Our complete portfolio includes filters for every stage of processing, and we offer custom solutions for your unique applications. GE is your complete source for filters, crossflow membranes, housings and other filtration equipment.
Product Specifications
Additional Information 0
Memtrex MP-S filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC], 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternately, the filters may be sanitized with compatible chemical agents.GE certifies that the material contained in its Memtrex MP-S pleated filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Memtrex MP-S filters meet the test criteria for USP class VI-121ºC Plastics.Aqueous extracts from Memtrex MP-S filters contain less that 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility. Please contact your GE distributor for more information.
Dimensions Effective Filtration Area
7 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

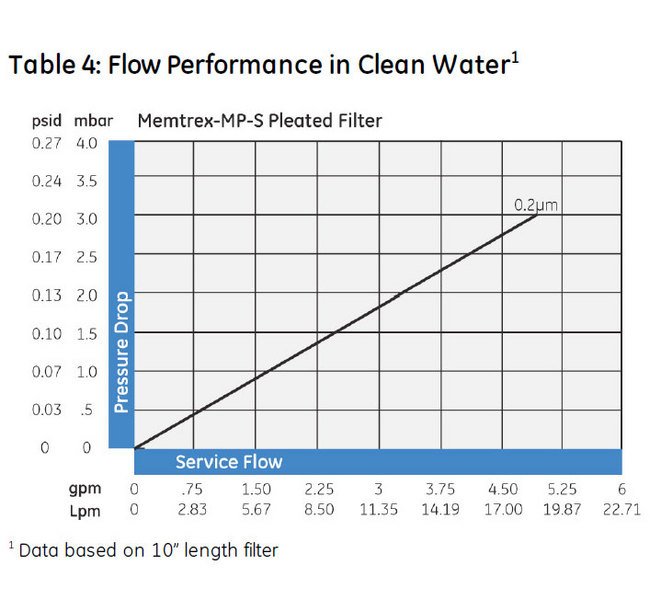

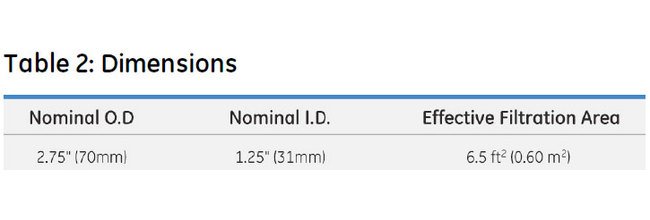

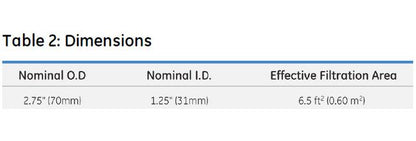

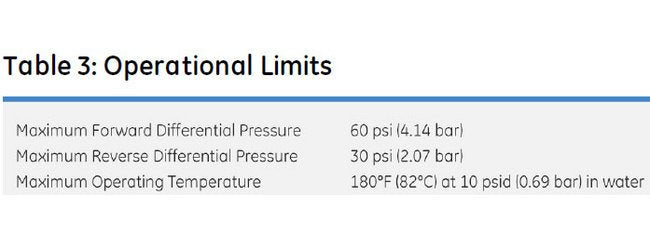

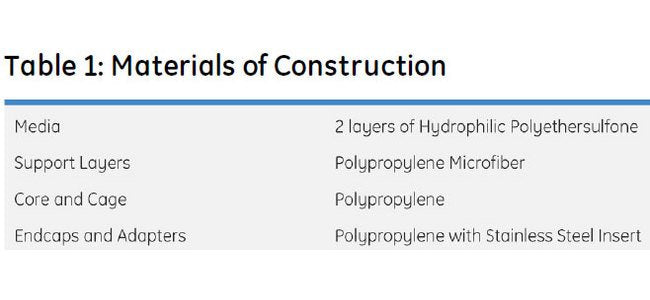

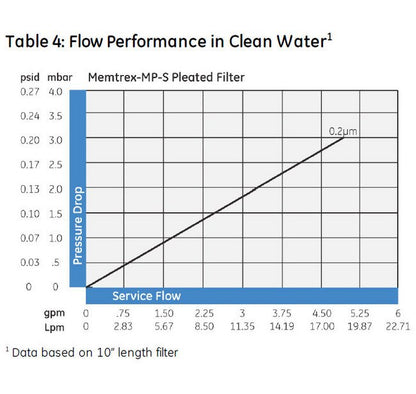

Memtrex MP-S filters are available the following absolute pore size micron rating: 0.2 µm. Tables 1, 2, 3 and 4 show further details on materials of construction, dimensions, operational limits and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polypropylene with Stainless Steel Insert
Materials Of Construction Media Material
2 Layers of Hydrophilic Polyethersulfone
Materials Of Construction Support Layers
Polypropylene Microfiber
Operational Limits Maximum Forward Differential Pressure
60 psi | 4.14 bar
Operational Limits Maximum Operating Temperature At 10 Psid 069
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure
30 psi | 2.07 bar
Specifications Absolute Micron Rating
0.2 µm
Specifications Elastomer Material
Silicone
Specifications End 1 Adapter
222 O-Ring Stainless Steel Support Ring
Specifications End 2 Adapter
120 O-Ring
Specifications Grade
Sterilizing
Specifications Integrity Testing
Air diffusion per 10" module after saturation with clean water. <12 cc/min at 40 psig (2.76 bar)
Specifications Nominal Cartridge Length
30 in | 76 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
MMP-S
Applications 0
Memtrex MP-S filters are specifically designed for sterile filtration of pharmaceutical and biological products. Typical applications include:Final Filtration of Drugs and BiologicalsFinal Filtration of Water for InjectionFinal Filtration of Pure Water for DialysisLVPs, SVPsDiagnosticsTissue Culture MediaVaccines
