Memtrex NY (MNY) filters (Figure 1) are uniquely constructed for superior performance with a serial membrane layer design that incorporates a large pore-size membrane layer upstream of the final membrane layer. The first membrane acts like a prefilter to increase the life and efficiency of the cartridge. It is also highly effective in retaining difficult contaminants such as gelatinous particles. The final membrane layer ensures consistent retention characteristics.MNY filters are designed to ensure maximum downstream cleanliness. GE Water & Process Technologies Nylon 66 membranes are naturally hydrophilic, non-shedding and do not contain leachable wetting agents. Thermoplastic sealing technologies are used in the cartridge construction eliminating the need for potentially contaminating adhesives. Each cartridge is manufactured under strict production control and is individually integrity tested. GE is your complete source for filters, crossflow membranes, housings and other filtration equipment.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
Memtrex NY filters may be autoclaved or in situ steam sterilized (up to 257ºF [125ºC], 30-minute cycles) for a maximum accumulated exposure of 10 hours. Alternately, the filters may be sanitized with compatible chemical agents.GE certifies that the material contained in its Memtrex NY pleated filters meet U.S. FDA requirements for food contact under the applicable regulations in 21 CFR. For further information, contact GE technical services. Memtrex NY filters meet the test criteria for USP class VI-121ºC Plastics.Aqueous extracts from Memtrex NY filters contain less that 0.25 EU/ml. The filters typically exhibit low levels of non-volatile residues.GE filter cartridges are designed and manufactured for resistance to a wide range of chemical solutions. Conditions will vary with each application and users should carefully verify chemical compatibility.
Dimensions Effective Filtration Area
7 ft² | 1 m²
Dimensions Nominal Inside Diameter
1.25 in | 31 mm
Dimensions Nominal Outside Diameter
2.75 in | 70 mm
General Properties 0

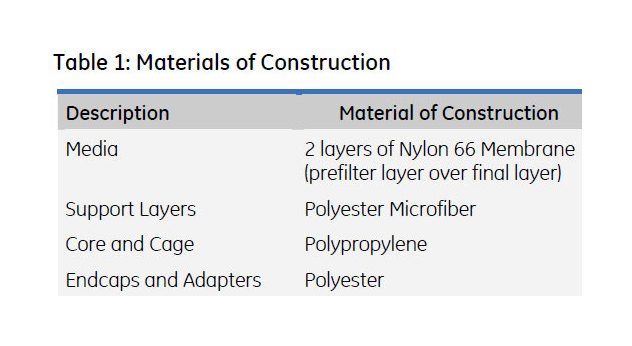

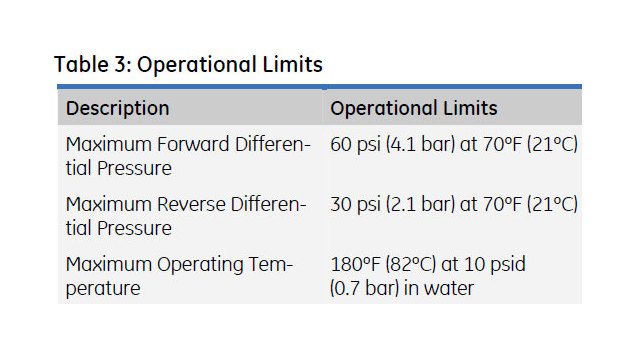

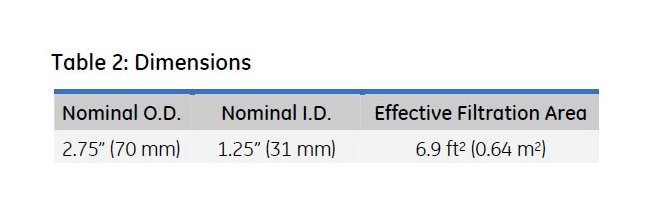

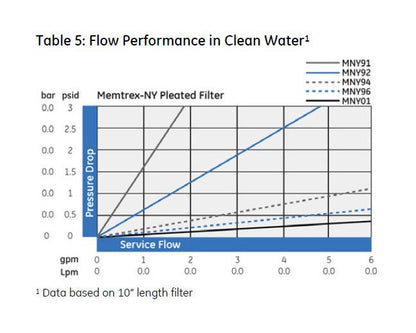

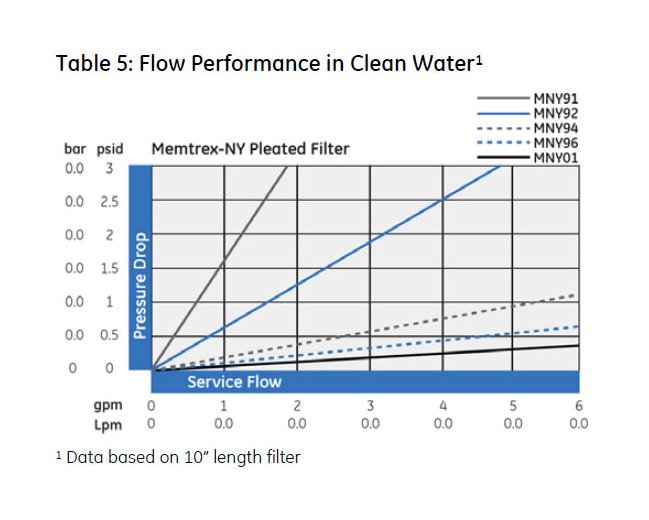

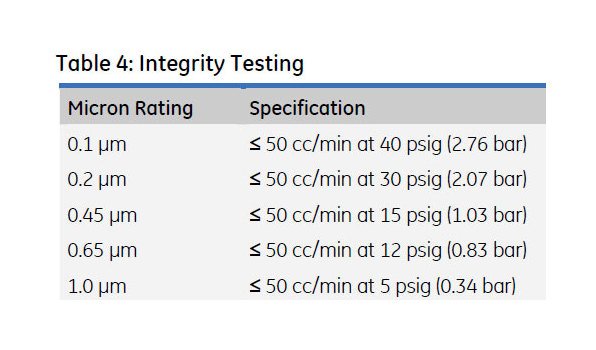

Memtrex NY filters are available the following absolute pore size micron ratings: 0.1, 0.2, 0.45, 0.65 and 1.0 µm. Tables 1, 2, 3, 4 and 5 show further details on materials of construction, dimensions, operational limits, integrity testing and flow performance.
MATERIALS OF CONSTRUCTION CORE AND CAGE
Polypropylene
Materials Of Construction Endcaps And Adapters
Polyester
Materials Of Construction Media Material
2 Layers of Nylon 66 Membrane (prefilter layer over final layer)
Materials Of Construction Support Layers
Polyester Microfiber
Operational Limits Maximum Forward Differential Pressure 70f 21c
60 psi | 4.1 bar
Operational Limits Maximum Operating Temperature At 10 Psid 07 B
180 ºF | 82 ºC
Operational Limits Maximum Reverse Differential Pressure 70f 21c
30 psi | 2.1 bar
Specifications Elastomer Material
Buna-N | EPDM | Silicone | Viton
Specifications End 1 Adapter
120 O-Ring
Specifications End 2 Adapter
Closed End Cap
Specifications Integrity Testing
≤ 50 cc/min at 15 psig | ≤ 50 cc/min at 1.03 bar
Specifications Micron Rating
0.45 µm
Specifications Nominal Cartridge Length
10 in | 25.4 cm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Type
MNY
Applications 0
MNY filters have excellent chemical compatibility making them the ideal choice for a broad range of applications such as high purity water, strong solvents, photoresists and other critical process fluid systems. Typical applications include:Filtration of pharmaceuticals intermediatesFiltration of positive photoresistsFinal filtration of beverages
