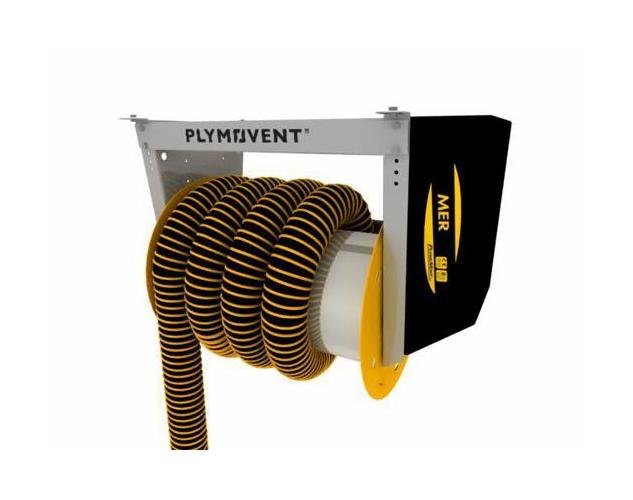

MER-850-150 Motorized Exhaust Reel (MER)

Name: MER-850-150 Motorized Exhaust Reel (MER)
Brand: Plymovent Corp.
SKU: HOS-9cc9a7
Price: 49.99 USD
Availability: OutOfStock

SKU:HOS-9cc9a7

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

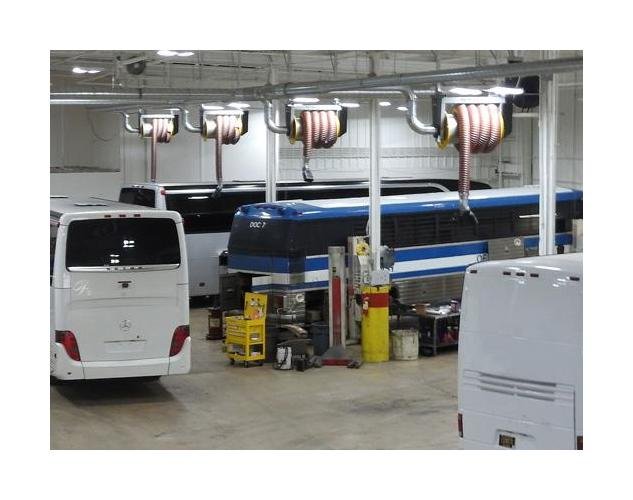

The Motorized Exhaust Reel (MER) is the ideal solution for truck, bus and construction off-road vehicle workshops with high ceilings and heavy high-temperature hoses. The rugged strength of the MER gives an extra margin for these applications, specifically if hoses are frequently raised and lowered.MER provides the best lifting capacity of all the Plymovent hose reels. MER’s power margin and strong transmission are designed to withstand heavy usage, thus ensuring long, reliable and trouble-free performance for many years.Designed to retract the hose with the assistance of an electrical high-torque motor.

Product Specifications

Specifications Applications

The MER provides a gear motor system that lifts the heaviest exhaust hose and nozzle. A standard overload relay and circuit breaker protect the mechanism from accidental strain.

Specifications Frequency

60 Hz

Specifications Hose Diameter

6 Inch | 150 mm

Specifications Maximum Hose Length

33.0 ft | 10.0 m

Specifications Motor

1080 rpm | 900 / 1080 rpm | 920 rpm

Specifications Number Of Phases

1 | 3

Specifications Output

0.75 hp | 0.55 kW

Specifications Rated Voltage

120 V | 230 or 460 V | 575 V

Specifications Uncoiling Speed With Gearbox 170

13/15 rpm | 15 rpm

Specifications Weight Without Hose

137 lb | 62 kg
