Merit Brass ASME Class 150 Flanged End Ball Valve
Merit Brass ASME Class 150 Flanged End Ball Valve
SKU:VAL-1eb3a2
High-performance ASME Class 150 Flanged End Ball Valve with ISO 5211 Mounting Pad and anti-static devices. ASME B16.34, API 608 compliant.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Merit Brass ASME Class 150 Flanged End Ball Valve
$149.99
Quantity: 1
Claim Your Seller Account
Merit Brass ASME Class 150 Flanged End Ball Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

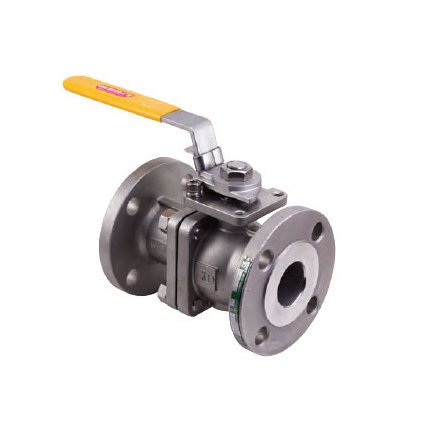

The Merit Brass ASME Class 150 Flanged End Ball Valve is a high-quality valve designed for durability and performance. This 2-piece body valve features a full port design for enhanced flow capacity. It is equipped with essential features such as built-in ISO 5211 Mounting Pad for easy automation, anti-static devices for Ball-Stem-Body, and a blow-out proof stem. With a pressure balance hole in the ball slot and a casting boss on the body for draining, this valve ensures reliable operation. Compliant with ASME B16.34, API 608 standards, this valve is suitable for a wide range of applications.

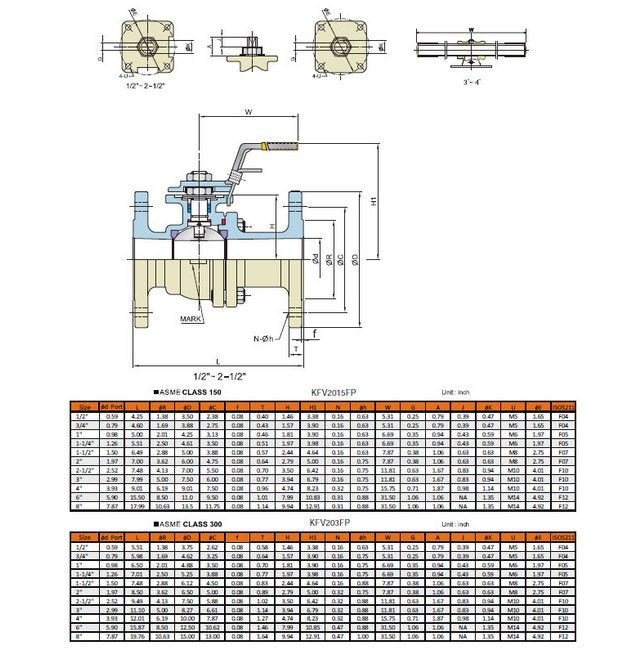

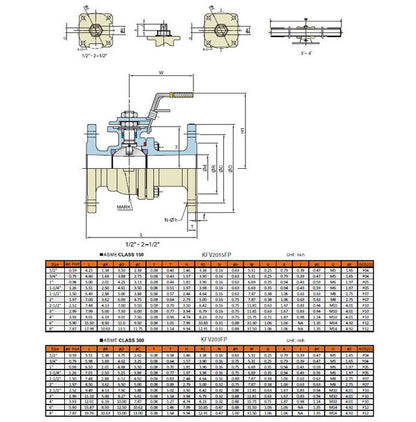

Product Specifications
Specifications Anti Static Device No 9
SUS 316SUS 304
Specifications Ball No 3
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308
Specifications Ball Seat No 4
TFM1600 / PTFE / RTFE
Specifications Belleville Washer No 15
SUS 301
Specifications Body Gasket No 5
PTFE
Specifications Body No 1
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI 3A /1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Bolting No 6
A193-B8A193- B7
Specifications Bolt Nut No 7
A194-8A194-2H
Specifications Bushing No 13
50%SS+50%PTFE
Specifications Cv
18
Specifications End Cap No 2
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Gland No 14
SUS 316
Specifications Handle Adapter 3 4 No 24
A351 -CF8
Specifications Lever 12 2 12 No 20
SUS 304
Specifications Lever Nut 12 2 12 No 18
A194-8
Specifications Lever Sleeve No 19
VINYL PLASTIC
Specifications Lock Device 12 2 12 No 21
SUS 304
Specifications Nameplate No 28
SUS 304
Specifications Options
Casting per NACE/MR - 01 -75 for Sour Gas Service | Castings Approved by TUV AD 2000-Merkblatt W0/EN 10204 3.2 Form. (EN 10204 3.1 Form is free) | Other Alloy are Available
Specifications O Ring No 11
FKM (VITON)
Specifications Pipe Handle 3 4 No 23
A53+Zn PLATED
Specifications Port
0.59
Specifications Set Screw 3 4 No 25
A193-B8
Specifications Size
1/2 in
Specifications Snap Ring 3 4 No 26
SUS 304
Specifications Stem No 8
SUS 316SUS 304
Specifications Stem Nut No 16
A194-8
Specifications Stem Packing No 12
PTFE
Specifications Stop Bolt No 22
A193- B8
Specifications Stop Lock Cap No 17
SUS 304
Specifications Thrust Washer No 10
PTFE
Specifications Torque
44 in·lbs
Specifications Triangle Stopper 3 4 No 27
SUS 420
Specifications Weight
3.62 lbs
