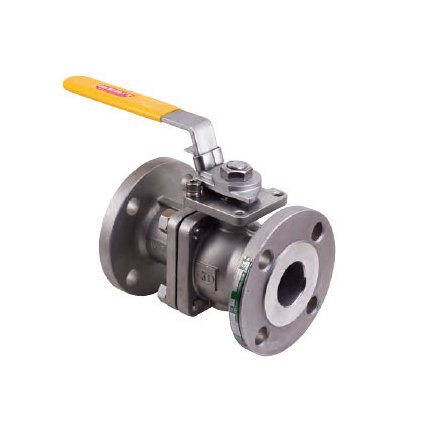

Merit Brass ASME Class 150 Flanged End Ball Valve - 8-inch Full Port
Merit Brass ASME Class 150 Flanged End Ball Valve - 8-inch Full Port
SKU:VAL-d971a5
High-quality 8" ASME Class 150 Flanged End Ball Valve with full port design and ISO 5211 mounting pad. ASME B16.34, ASME B16.10, ASME B16.5 compliant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Merit Brass ASME Class 150 Flanged End Ball Valve - 8-inch Full Port
$899.99
Quantity: 1
Claim Your Seller Account
Merit Brass ASME Class 150 Flanged End Ball Valve - 8-inch Full Port
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Merit Brass ASME Class 150 Flanged End Ball Valve is a high-quality valve designed for industrial applications. This 2-PC body valve features a full port design with a built-in ISO 5211 mounting pad for easy automation. It is equipped with anti-static devices for ball-stem-body, a blow-out proof stem, and a pressure balance hole in the ball slot. With compliance to ASME B16.34 for design, ASME B16.10 for face to face dimension, and ASME B16.5 for end flange, this valve meets rigorous standards for reliability and performance. The valve also includes a casting boss on the body for draining, ensuring maintenance is convenient and efficient.
Product Specifications
Specifications Anti Static Device No 9
SUS 316SUS 304
Specifications Ball No 3
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308
Specifications Ball Seat No 4
TFM1600 / PTFE / RTFE
Specifications Belleville Washer No 15
SUS 301
Specifications Body Gasket No 5
PTFE
Specifications Body No 1
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI 3A /1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Bolting No 6
A193-B8A193- B7
Specifications Bolt Nut No 7
A194-8A194-2H
Specifications Bushing No 13
50%SS+50%PTFE
Specifications Cv
4200
Specifications End Cap No 2
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Gland No 14
SUS 316
Specifications Handle Adapter 3 4 No 24
A351 -CF8
Specifications Lever 12 2 12 No 20
SUS 304
Specifications Lever Nut 12 2 12 No 18
A194-8
Specifications Lever Sleeve No 19
VINYL PLASTIC
Specifications Lock Device 12 2 12 No 21
SUS 304
Specifications Nameplate No 28
SUS 304
Specifications Options
Casting per NACE/MR - 01 -75 for Sour Gas Service | Castings Approved by TUV AD 2000-Merkblatt W0/EN 10204 3.2 Form. (EN 10204 3.1 Form is free) | Other Alloy are Available
Specifications O Ring No 11
FKM (VITON)
Specifications Pipe Handle 3 4 No 23
A53+Zn PLATED
Specifications Port
7.87
Specifications Set Screw 3 4 No 25
A193-B8
Specifications Size
8 in
Specifications Snap Ring 3 4 No 26
SUS 304
Specifications Stem No 8
SUS 316SUS 304
Specifications Stem Nut No 16
A194-8
Specifications Stem Packing No 12
PTFE
Specifications Stop Bolt No 22
A193- B8
Specifications Stop Lock Cap No 17
SUS 304
Specifications Thrust Washer No 10
PTFE
Specifications Torque
3806 in·lbs
Specifications Triangle Stopper 3 4 No 27
SUS 420
Specifications Weight
276.96 lbs
