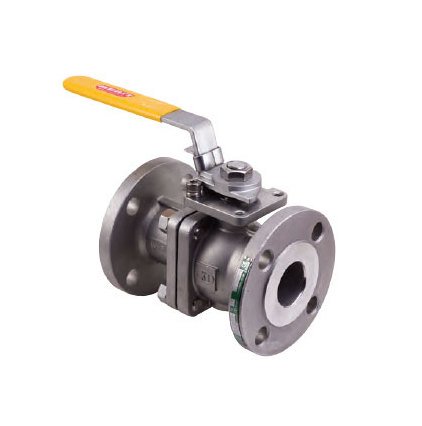

Merit Brass ASME Class 150 Flanged End Ball Valve - Size 6in
Merit Brass ASME Class 150 Flanged End Ball Valve - Size 6in
SKU:VAL-264253
Premium Merit Brass Flanged Ball Valve with full port design, ideal for industrial fluid control
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Merit Brass ASME Class 150 Flanged End Ball Valve - Size 6in
$899.99
Quantity: 1
Claim Your Seller Account
Merit Brass ASME Class 150 Flanged End Ball Valve - Size 6in
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Merit Brass ASME Class 150 Flanged End Ball Valve features a 2-PC body design with a full port for efficient flow control. Equipped with an ISO 5211 Mounting Pad for easy automation and anti-static devices for added safety, this valve also includes a blow-out proof stem, pressure balance hole in the ball slot, and a casting boss for draining purposes. Compliant with ASME B16.34 design standards, this valve ensures reliable performance and durability, making it ideal for industrial applications requiring precise fluid regulation.
Product Specifications
Specifications Anti Static Device No 9
SUS 316SUS 304
Specifications Ball No 3
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308
Specifications Ball Seat No 4
TFM1600 / PTFE / RTFE
Specifications Belleville Washer No 15
SUS 301
Specifications Body Gasket No 5
PTFE
Specifications Body No 1
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI 3A /1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Bolting No 6
A193-B8A193- B7
Specifications Bolt Nut No 7
A194-8A194-2H
Specifications Bushing No 13
50%SS+50%PTFE
Specifications Cv
2600
Specifications End Cap No 2
ANSI / JIS / DINA351 - CF8M / SCS14A / 1.4408A351 - CF8 / SCSI3A / 1.4308A216 - WCB / SCPH2 / 1.0619
Specifications Gland No 14
SUS 316
Specifications Handle Adapter 3 4 No 24
A351 -CF8
Specifications Lever 12 2 12 No 20
SUS 304
Specifications Lever Nut 12 2 12 No 18
A194-8
Specifications Lever Sleeve No 19
VINYL PLASTIC
Specifications Lock Device 12 2 12 No 21
SUS 304
Specifications Nameplate No 28
SUS 304
Specifications Options
Casting per NACE/MR - 01 -75 for Sour Gas Service | Castings Approved by TUV AD 2000-Merkblatt W0/EN 10204 3.2 Form. (EN 10204 3.1 Form is free) | Other Alloy are Available
Specifications O Ring No 11
FKM (VITON)
Specifications Pipe Handle 3 4 No 23
A53+Zn PLATED
Specifications Port
5.90
Specifications Set Screw 3 4 No 25
A193-B8
Specifications Size
6 in
Specifications Snap Ring 3 4 No 26
SUS 304
Specifications Stem No 8
SUS 316SUS 304
Specifications Stem Nut No 16
A194-8
Specifications Stem Packing No 12
PTFE
Specifications Stop Bolt No 22
A193- B8
Specifications Stop Lock Cap No 17
SUS 304
Specifications Thrust Washer No 10
PTFE
Specifications Torque
2708 in·lbs
Specifications Triangle Stopper 3 4 No 27
SUS 420
Specifications Weight
161.07 lbs
