Mesur-Fil Fluid Coupling HCM-27 Standard
Mesur-Fil Fluid Coupling HCM-27 Standard
SKU:FLE-c981cd
Mesur-Fil Fluid Coupling HCM-27 Standard: Efficient power transmission with precision design for industrial applications.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Mesur-Fil Fluid Coupling HCM-27 Standard
$1,999.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil Fluid Coupling HCM-27 Standard
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

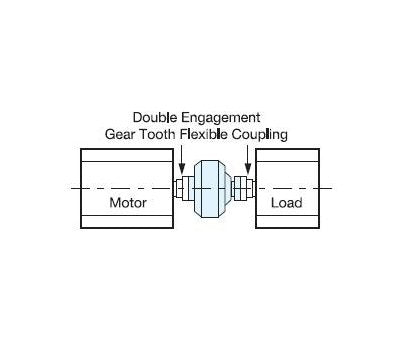

The Mesur-Fil Fluid Coupling HCM-27 Standard is a cutting-edge solution for efficient power transmission. This complete unit features input and output flanges, designed to be seamlessly installed within a double engagement gear tooth flexible coupling. With precise dimensions and a robust build, this fluid coupling ensures reliable performance and smooth power transfer. Ideal for industrial applications requiring high torque and precision.
Ready to Grow Without Cash Flow Constraints?

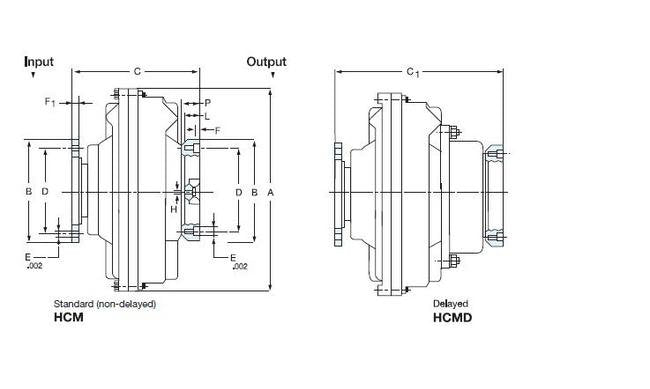

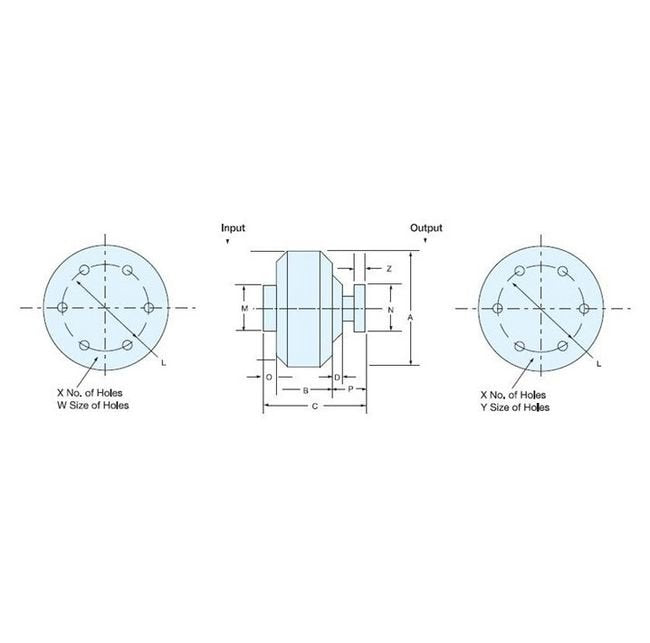

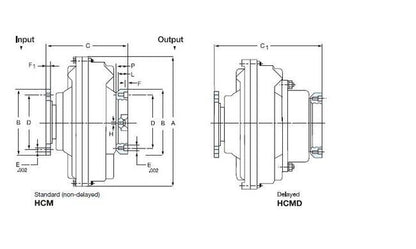

Product Specifications
Note 0
Exposed Bolts
Specifications Diameter E
0.750 in
Specifications Dimension A
30.71 in
Specifications Dimension B
11.020 in
Specifications Dimension C
16.06 in
Specifications Dimension C1
20.71 in
Specifications Dimension D
9.50 in
Specifications Dimension F
0.866 in
Specifications Dimension F1
1.220 in
Specifications Dimension H
3/4-10
Specifications Dimension L
2.008 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
3 1/2 in
Specifications Inner Inertia
48 lb·ft²
Specifications Maximum Oil Volume
11.09 oz | 13.21 gal
Specifications Nr E
8 in
Specifications Outer For Hcmd Wr2
160.0 lb·ft²
Specifications Outer Inertia
145 lb·ft²
Specifications Size
27
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
454 lb | 505 lb
