Mesur-Fil Fluid Coupling HCM-29
Mesur-Fil Fluid Coupling HCM-29
SKU:FLE-399eba
High-performance Mesur-Fil Fluid Coupling for seamless power transmission.
Regular price
$2,299.99
Regular price
Sale price
$2,299.99
Unit price
per
Initiate Order
Mesur-Fil Fluid Coupling HCM-29
$2,299.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil Fluid Coupling HCM-29
$2,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

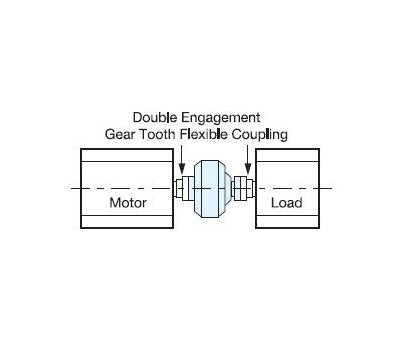

The Mesur-Fil Fluid Coupling HCM-29 is a high-performance unit designed for seamless integration into double engagement gear tooth flexible couplings. It comes equipped with input and output flanges, offering superior connectivity and efficiency. With precise dimensions and a durable build, this fluid coupling ensures optimal power transmission and enhanced operational reliability. Ideal for industrial applications requiring dependable performance.
Ready to Grow Without Cash Flow Constraints?

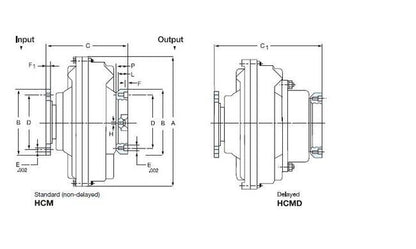

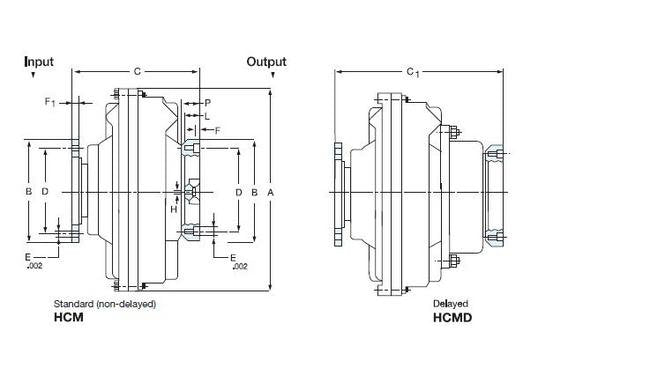

Product Specifications
Note 0
Exposed Bolts
Specifications Diameter E
0.750 in
Specifications Dimension A
33.86 in
Specifications Dimension B
11.020 in
Specifications Dimension C
17.20 in
Specifications Dimension C1
21.85 in
Specifications Dimension D
9.50 in
Specifications Dimension F
0.866 in
Specifications Dimension F1
1.220 in
Specifications Dimension H
3/4-10
Specifications Dimension L
2.008 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
3 1/2 in
Specifications Inner Inertia
66.4 lb·ft²
Specifications Maximum Oil Volume
14.53 oz | 16.64 gal
Specifications Nr E
8 in
Specifications Outer For Hcmd Wr2
235.4 lb·ft²
Specifications Outer Inertia
220.5 lb·ft²
Specifications Size
29
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
562 lb | 613 lb
