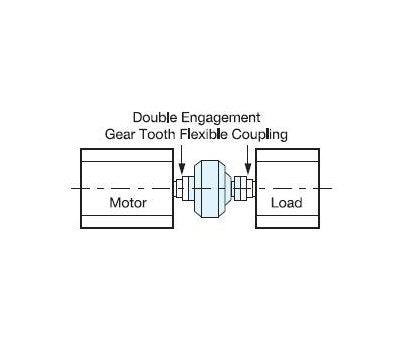

The Mesur-Fil Fluid Coupling HCM Model is a highly efficient unit featuring both input and output flanges. Designed for seamless integration within double engagement gear tooth flexible couplings, this product enhances operational performance and reliability. With precise dimensions and robust construction, it ensures optimal fluid transfer and power transmission. Ideal for industrial applications requiring superior coupling technology.
Product Specifications
Note 0
Gear couplings must be with Shrouded Bolts!

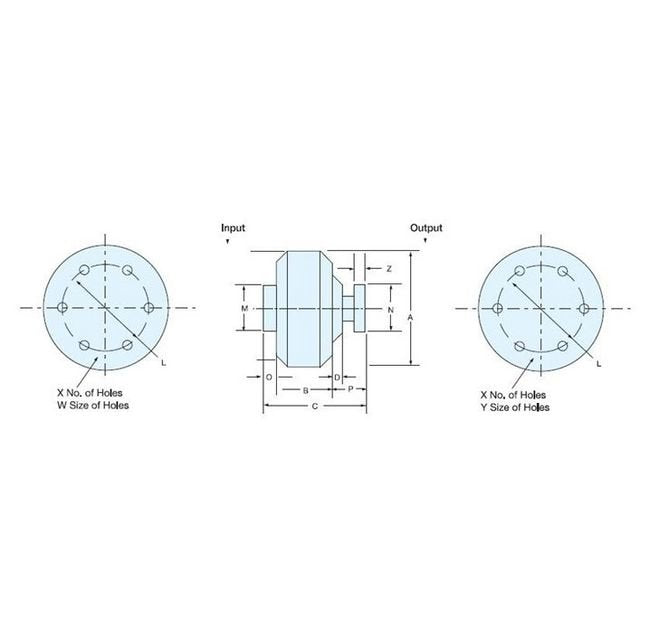

Specifications Diameter Of Shrouded Bolt Circle
4.812
Specifications Dimension A
10.25 in
Specifications Dimension B
4.70 in
Specifications Dimension C
7.49 in
Specifications Dimension D
0.77 in
Specifications Dimension L
4.812 in
Specifications Dimension M
5.90 in
Specifications Dimension N
6.00 in
Specifications Dimension O
1.14 in
Specifications Dimension P
1.65 in
Specifications Dimension W
3/8-16 0.65 Deep
Specifications Dimension X
8 in
Specifications Dimension Y
0.380 to 0.382 in
Specifications Dimension Z
1/4 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
1-1/2 in
Specifications Inner Inertia
0.51 lb·ft²
Specifications Maximum Bore
2.19 | 2.25 | 2.38
Specifications Maximum Oil Volume
65.0 oz
Specifications Outer Inertia
1.27 lb·ft²
Specifications Size
9.4
Specifications Weight Less Oil
32.25 lb
