Mesur-Fil Fluid Coupling HCM Model 21

Mesur-Fil Fluid Coupling HCM Model 21

FLE-930a28

Enhance power transmission with the Mesur-Fil Fluid Coupling HCM Model 21. Reliable performance, precise dimensions, and durable construction for optimal efficiency.

$899.99
$899.99
Sale

Initiate Order

Mesur-Fil Fluid Coupling HCM Model 21

Mesur-Fil Fluid Coupling HCM Model 21

$899.99

Quantity: 1

Claim Your Seller Account

Mesur-Fil Fluid Coupling HCM Model 21

Mesur-Fil Fluid Coupling HCM Model 21

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

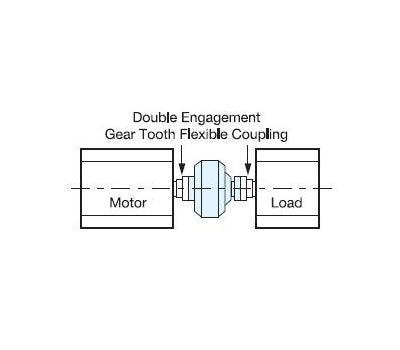

The Mesur-Fil Fluid Coupling HCM Model 21 is a robust and versatile unit designed for precise power transmission between two halves of a double engagement gear tooth flexible coupling, enhancing operational efficiency and reducing maintenance costs. With dimensions meeting industry standards (Dimension A: 24.41 in, Dimension B: 8.385 in, Dimension C: 12.59 in), it offers a seamless fit for various applications. Weighing 240 lb, this coupling ensures reliable performance with a maximum oil volume of 5.02 oz, meeting stringent quality and durability requirements. Manufactured by Wichita Clutch, this model prioritizes efficiency and longevity.

Product Specifications

Specifications Diameter E
0.502 in
Specifications Dimension A
24.41 in
Specifications Dimension B
8.385 in
Specifications Dimension C
12.59 in
Specifications Dimension C1
16.38 in
Specifications Dimension D
7.000 in
Specifications Dimension F
0.374 in
Specifications Dimension F1
0.394 in
Specifications Dimension H
1/2-20
Specifications Dimension L
1.22 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
2-1/2 in
Specifications Inner Inertia
23 lb·ft²
Specifications Maximum Oil Volume
5.02 oz | 6.07 gal
Specifications Nr E
10 in
Specifications Outer For Hcmd Wr2
57.2 lb·ft²
Specifications Outer Inertia
51 lb·ft²
Specifications Size
21
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
240 lb | 262 lb
