Mesur-Fil Fluid Coupling - Model HCM 15
Mesur-Fil Fluid Coupling - Model HCM 15
SKU:FLE-c67d69
Enhance gear tooth flexible couplings with the Mesur-Fil Fluid Coupling from Wichita Clutch for superior performance and durability.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Mesur-Fil Fluid Coupling - Model HCM 15
$1,399.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil Fluid Coupling - Model HCM 15
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

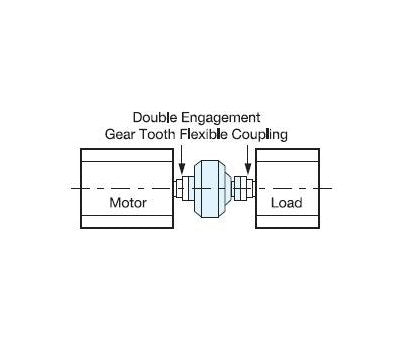

The Mesur-Fil Fluid Coupling Model HCM 15 is a robust unit designed for seamless integration within double engagement gear tooth flexible couplings. With precise dimensions of 18.110" x 8.385" x 9.84", and a weight of 104 lb, it offers outstanding performance. Its maximum oil volume of 2.27 gal ensures optimal efficiency. This coupling, manufactured by Wichita Clutch, meets rigorous industry standards for reliability and durability.

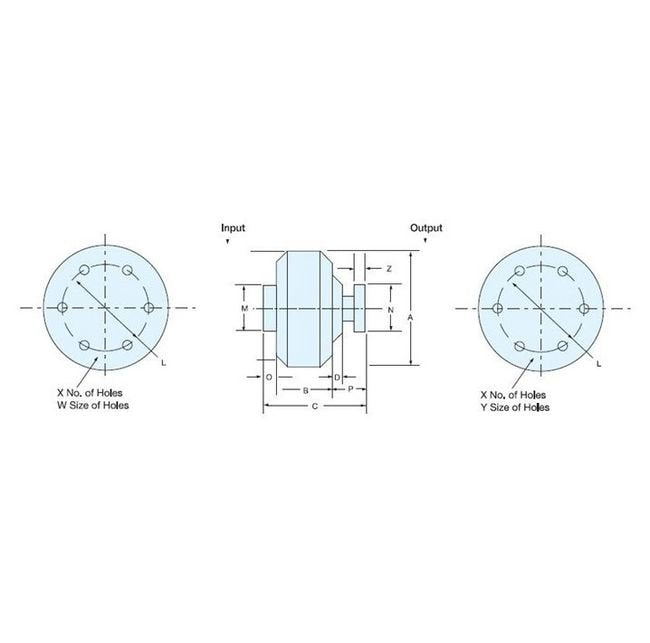

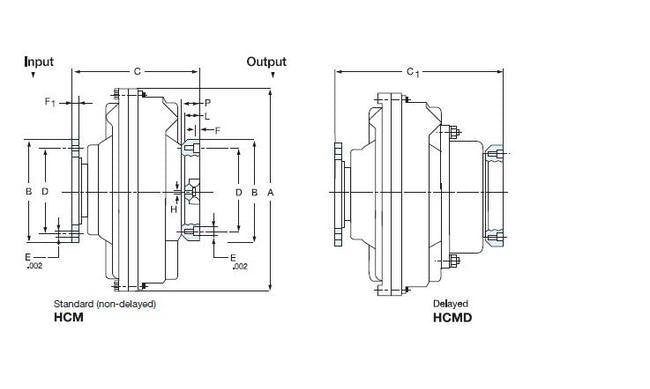

Product Specifications
Specifications Diameter E
0.502 in
Specifications Dimension A
18.110 in
Specifications Dimension B
8.385 in
Specifications Dimension C
9.84 in
Specifications Dimension C1
12.95 in
Specifications Dimension D
7.000 in
Specifications Dimension F
0.354 in
Specifications Dimension F1
0.394 in
Specifications Dimension H
1/2-20
Specifications Dimension L
0.945 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
2-1/2 in
Specifications Inner Inertia
4.5 lb·ft²
Specifications Maximum Oil Volume
2.02 oz | 2.27 gal
Specifications Nr E
10 in
Specifications Outer For Hcmd Wr2
14.6 lb·ft²
Specifications Outer Inertia
13.5 lb·ft²
Specifications Size
15
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
104 lb | 112 lb
