Mesur-Fil Fluid Coupling - Model HCM 17
Mesur-Fil Fluid Coupling - Model HCM 17
SKU:FLE-5fd463
High-performance Mesur-Fil Fluid Coupling for precise power transmission in industrial applications.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Mesur-Fil Fluid Coupling - Model HCM 17
$849.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil Fluid Coupling - Model HCM 17
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

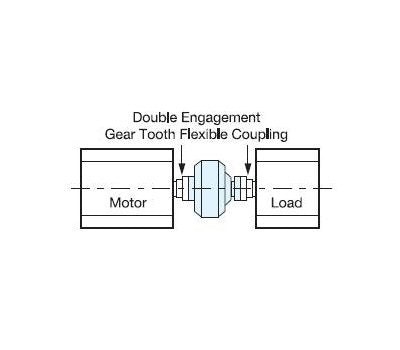

The Mesur-Fil Fluid Coupling Model HCM 17 is a precision-engineered unit designed for seamless integration within double engagement gear tooth flexible couplings. With input and output flanges, it offers superior performance and durability. Built to industry-leading standards, this fluid coupling ensures optimal power transmission and minimal maintenance requirements. Its compact design, robust construction, and efficient oil management make it ideal for heavy-duty applications in various industries, delivering reliable and consistent operation. Trust the Mesur-Fil Fluid Coupling for dependable power transfer and unmatched performance.

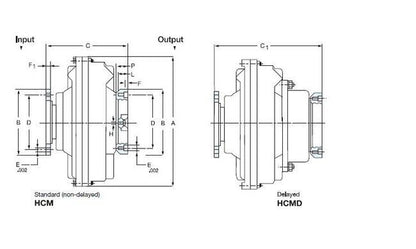

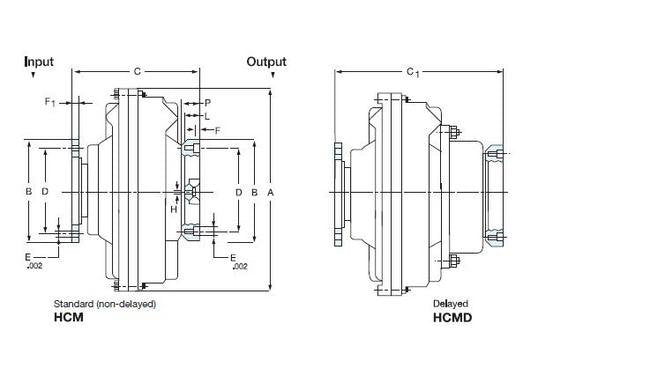

Product Specifications
Specifications Diameter E
0.502 in
Specifications Dimension A
20.47 in
Specifications Dimension B
8.385 in
Specifications Dimension C
9.84 in
Specifications Dimension C1
13.079 in
Specifications Dimension D
7.000 in
Specifications Dimension F
0.374 in
Specifications Dimension F1
0.394 in
Specifications Dimension H
1/2-20
Specifications Dimension L
1.000 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
2-1/2 in
Specifications Inner Inertia
8.6 lb·ft²
Specifications Maximum Oil Volume
3.09 oz | 3.48 gal
Specifications Nr E
10 in
Specifications Outer For Hcmd Wr2
25.0 lb·ft²
Specifications Outer Inertia
22.5 lb·ft²
Specifications Size
17
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
146 lb | 158 lb
