Mesur-Fil HCM Fluid Coupling
Mesur-Fil HCM Fluid Coupling
SKU:FLE-8d9d9b
Enhance fluid power transmission with the Mesur-Fil HCM Fluid Coupling, designed for industrial efficiency and reliability.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Mesur-Fil HCM Fluid Coupling
$1,899.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil HCM Fluid Coupling
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

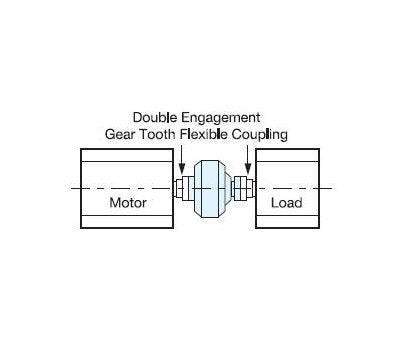

The Mesur-Fil HCM Fluid Coupling is a reliable solution for fluid power transmission in industrial settings. Designed as a complete unit with both input and output flanges, this coupling fits seamlessly between double engagement gear tooth flexible couplings provided by the customer. With a robust construction and precise specifications including a size of 24 and dimensions meeting industry standards, it ensures efficient and smooth power transfer. The Mesur-Fil HCM Fluid Coupling is ideal for use in applications where dependable and consistent performance is paramount.
Product Specifications

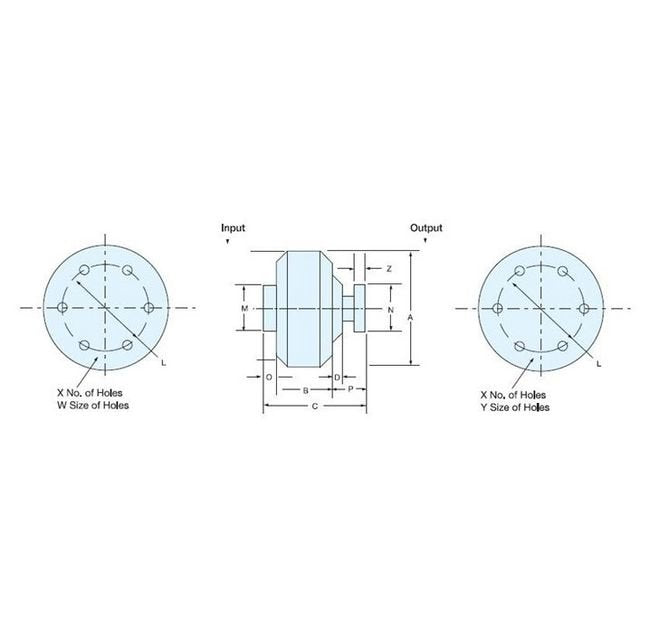

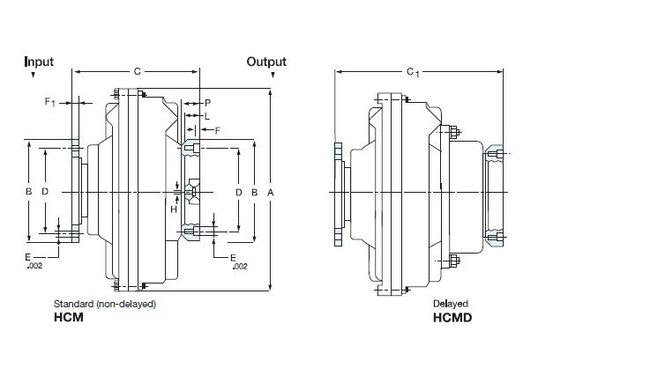

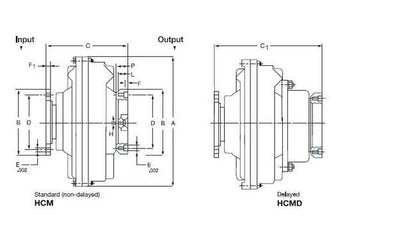

Specifications Diameter E
0.502 in
Specifications Dimension A
27.95 in
Specifications Dimension B
8.385 in
Specifications Dimension C
12.59 in
Specifications Dimension C1
16.38 in
Specifications Dimension D
7.000 in
Specifications Dimension F
0.374 in
Specifications Dimension F1
0.394 in
Specifications Dimension H
1/2-2 0
Specifications Dimension L
1.22 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
2-1/2 in
Specifications Inner Inertia
46 lb·ft²
Specifications Maximum Oil Volume
7.50 oz | 8.24 gal
Specifications Nr E
10 in
Specifications Outer For Hcmd Wr2
102.2 lb·ft²
Specifications Outer Inertia
96 lb·ft²
Specifications Size
24
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
285 lb | 307 lb
