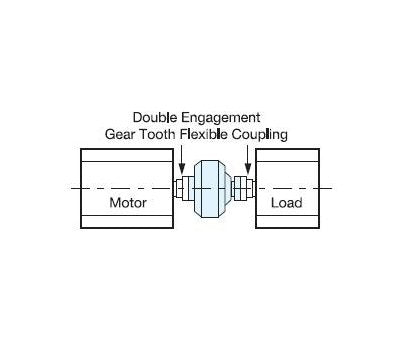

The Mesur-Fil HCM Fluid Coupling is a high-quality coupling unit designed for precise fluid transmission between gear tooth flexible couplings. It features durable construction with input and output flanges for seamless integration. With dimensions meeting industry standards and a maximum oil volume of 27.6 oz, this coupling ensures reliable performance in various applications. The Mesur-Fil HCM is compatible with 1-inch gear couplings from reputable manufacturers like Wichita Clutch, meeting stringent procurement requirements.
Product Specifications
Note 0
Gear couplings must be with Shrouded Bolts!

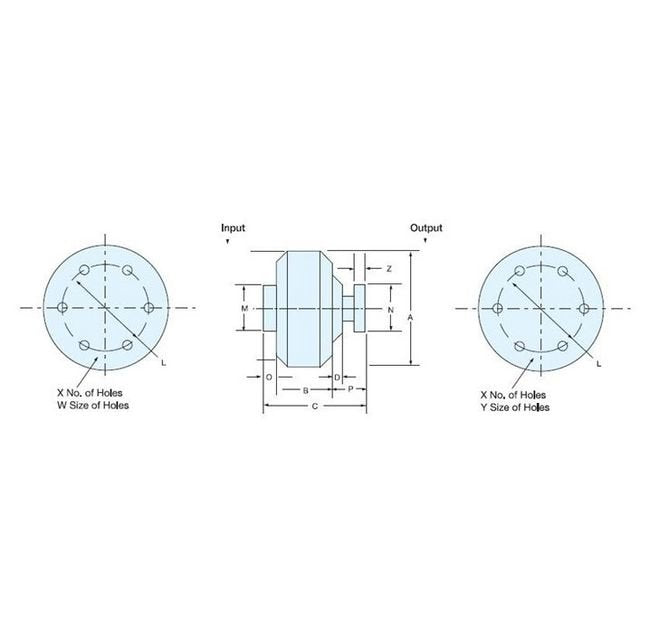

Specifications Diameter Of Shrouded Bolt Circle
3.75 | 3.750
Specifications Dimension A
7.81 in
Specifications Dimension B
3.67 in
Specifications Dimension C
5.98 in
Specifications Dimension D
0.56 in
Specifications Dimension L
3.75 in
Specifications Dimension M
4.70 in
Specifications Dimension N
4.56 in
Specifications Dimension O
1.10 in
Specifications Dimension P
1.21 in
Specifications Dimension W
1/4-20 0.56 Deep
Specifications Dimension X
6 in
Specifications Dimension Y
0.254 to 0.256 in
Specifications Dimension Z
3/16 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
1 in
Specifications Inner Inertia
0.10 lb·ft²
Specifications Maximum Bore
1.63 | 1.75
Specifications Maximum Oil Volume
27.6 oz
Specifications Outer Inertia
0.42 lb·ft²
Specifications Size
7.0
Specifications Weight Less Oil
16.10 lb
