The Mesur-Fil HCM Fluid Coupling is a robust and efficient unit designed for seamless integration between double engagement gear tooth flexible couplings. With a size of 19, standard type, and precise dimensions for secure fitting, this coupling ensures reliable power transmission. Weighing 165 lbs (less oil) and supporting a maximum oil volume of 3.75 oz, it offers superior performance in industrial applications. The Mesur-Fil HCM Fluid Coupling, with outer and inner inertia specifications, is manufactured by Wichita Clutch, meeting stringent quality standards for durability and functionality.

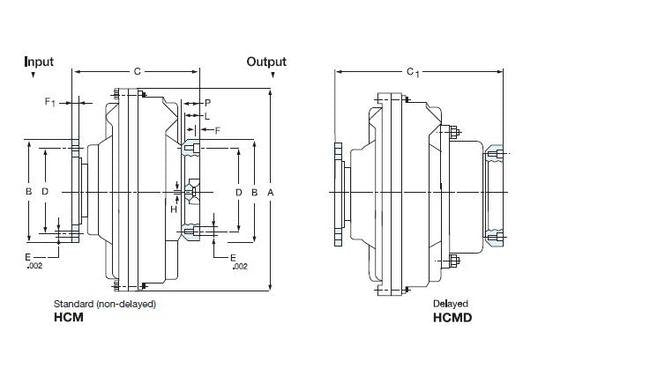

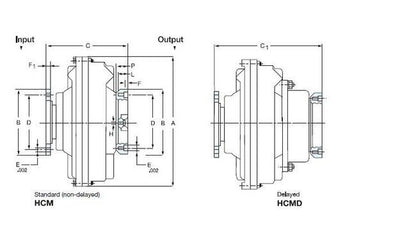

Product Specifications
Specifications Diameter E
0.502 in
Specifications Dimension A
22.24 in
Specifications Dimension B
8.385 in
Specifications Dimension C
9.84 in
Specifications Dimension C1
13.079 in
Specifications Dimension D
7.000 in
Specifications Dimension F
0.374 in
Specifications Dimension F1
0.394 in
Specifications Dimension H
1/2-20
Specifications Dimension L
1.000 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
2-1/2 in
Specifications Inner Inertia
14.5 lb·ft²
Specifications Maximum Oil Volume
3.75 oz | 4.22 gal
Specifications Nr E
10 in
Specifications Outer For Hcmd Wr2
35.1 lb·ft²
Specifications Outer Inertia
33 lb·ft²
Specifications Size
19
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
165 lb | 178 lb
