The Mesur-Fil HCM Fluid Coupling is a high-quality unit equipped with input and output flanges designed to enhance the performance of gear couplings. With precise dimensions and a sturdy build, this fluid coupling ensures efficient power transmission and reliable operation. It features a maximum oil volume of 150.0 oz, meeting the requirements for heavy-duty industrial applications. The Mesur-Fil HCM Fluid Coupling is manufactured by Wichita Clutch, a renowned name in the industry, ensuring top-notch quality and durability.
Product Specifications
Note 0

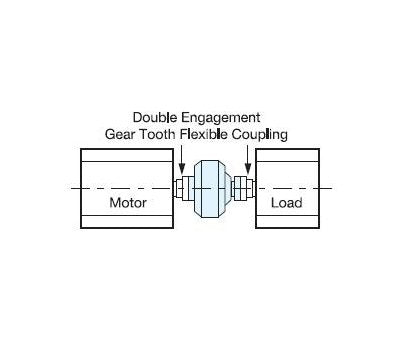

Gear couplings must be with Shrouded Bolts!

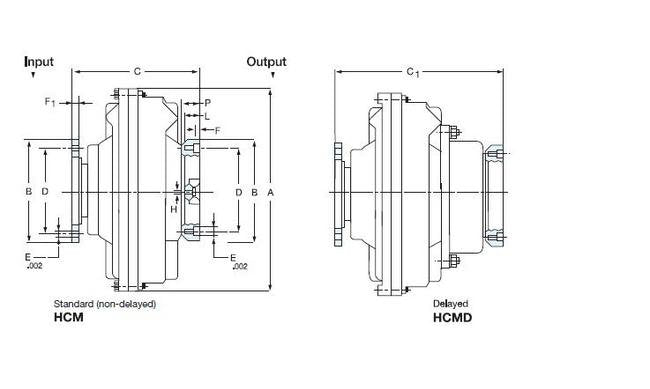

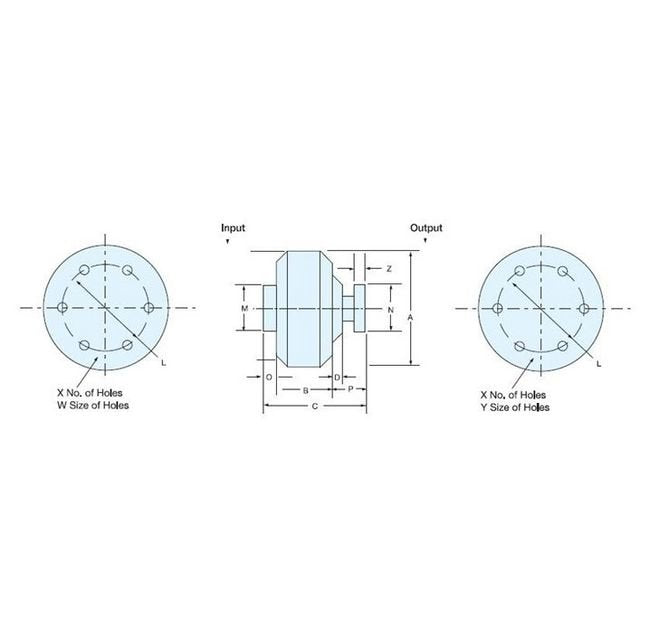

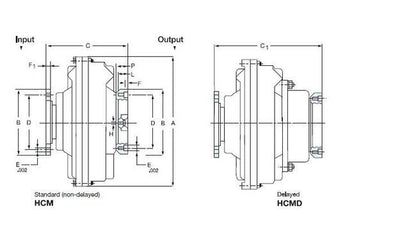

Specifications Diameter Of Shrouded Bolt Circle
4.812
Specifications Dimension A
13.50 in
Specifications Dimension B
5.98 in
Specifications Dimension C
8.67 in
Specifications Dimension D
0.82 in
Specifications Dimension L
4.812 in
Specifications Dimension M
6.85 in
Specifications Dimension N
6.00 in
Specifications Dimension O
1.14 in
Specifications Dimension P
1.55 in
Specifications Dimension W
3/8-16 0.74 Deep
Specifications Dimension X
8 in
Specifications Dimension Y
0.380 to 0.382 in
Specifications Dimension Z
1/4 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
1-1/2 in
Specifications Inner Inertia
1.33 lb·ft²
Specifications Maximum Bore
2.19 | 2.25 | 2.38
Specifications Maximum Oil Volume
150.0 oz
Specifications Outer Inertia
4.12 lb·ft²
Specifications Size
12.4
Specifications Weight Less Oil
53.25 lb
