Mesur-Fil HCM Fluid Coupling, Size 34
Mesur-Fil HCM Fluid Coupling, Size 34
SKU:FLE-f5e408
High-performance Mesur-Fil HCM Fluid Coupling for precise torque control and reliable power transmission. Engineered to meet industry standards.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Mesur-Fil HCM Fluid Coupling, Size 34
$1,799.99
Quantity: 1
Claim Your Seller Account
Mesur-Fil HCM Fluid Coupling, Size 34
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

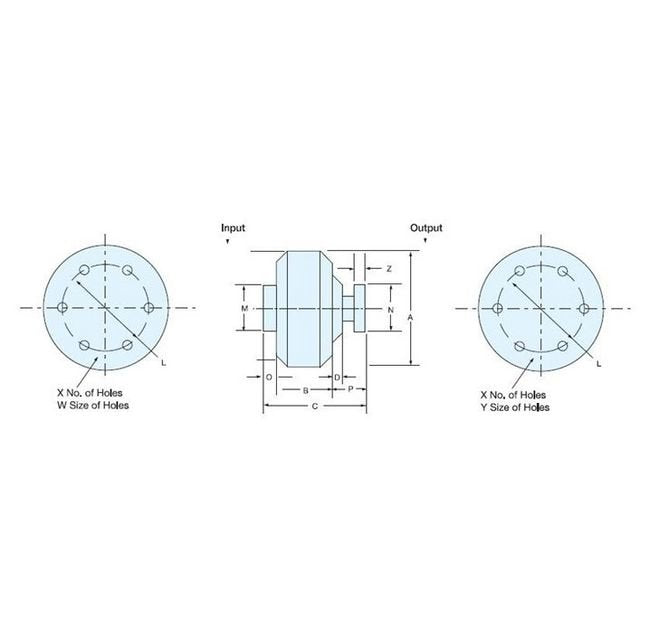

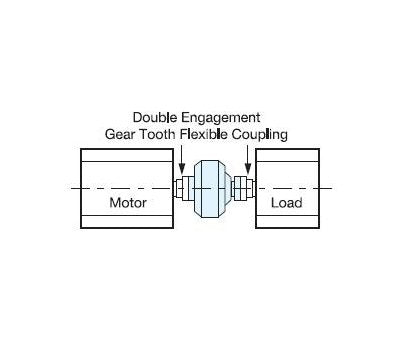

The Mesur-Fil HCM Fluid Coupling is a high-quality unit featuring a robust design with input and output flanges. Specifically engineered for installation between two halves of a double engagement gear tooth flexible coupling, this product ensures reliable power transmission and precise torque control. With dimensions meeting industry standards and a sturdy construction, it offers exceptional performance in demanding environments.
Product Specifications
Note 0
Exposed Bolts

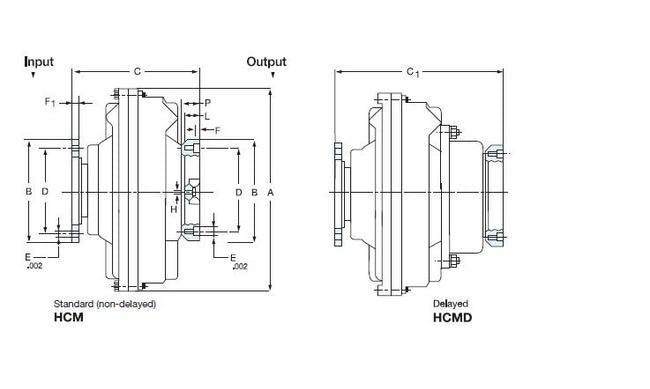

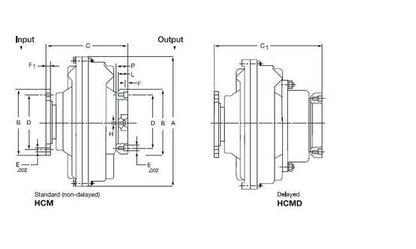

Specifications Diameter E
0.750 in
Specifications Dimension A
39.37 in
Specifications Dimension B
12.159 in
Specifications Dimension C
24.96 in
Specifications Dimension C1
28.90 in
Specifications Dimension D
11.00 in
Specifications Dimension F
0.866 in
Specifications Dimension F1
1.102 in
Specifications Dimension H
3/4-10
Specifications Dimension L
2.283 in
Specifications Gear Coupling Manufacturer
Wichita Clutch
Specifications Gear Coupling Size
4 in
Specifications Inner Inertia
28.5 lb·ft²
Specifications Maximum Oil Volume
21.80 oz | 24.50 gal
Specifications Nr E
8 in
Specifications Outer For Hcmd Wr2
668.5 lb·ft²
Specifications Outer Inertia
650 lb·ft²
Specifications Size
34
Specifications Type
Standard (Non-Delay)
Specifications Weight Less Oil
960 lb | 978 lb
