Metal Conduit Type EFST - Liquid Tight Flexible Conduit 1/4" - 500ft

Name: Metal Conduit Type EFST - Liquid Tight Flexible Conduit 1/4" - 500ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-e5337b
Price: 299.99 USD
Availability: OutOfStock

SKU:LIQ-e5337b

Durable Metal Conduit Type EFST - Liquid Tight, Flexible, Sunlight Resistant. Ideal for general construction grade applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

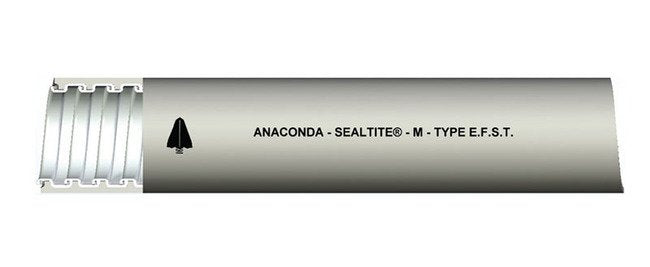

The Metal Conduit Type EFST is a versatile solution providing a flexible liquid-tight raceway for wiring. Constructed with a hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit ensures durability and reliability. With an IP 67 rating when installed with approved end connectors, it meets industry certifications such as RoHS and WEEE standards. Ideal for general construction grade applications with a temperature range of -4ºF to +176ºF (-20ºC to +80ºC). Trust the Metal Conduit Type EFST for your wiring needs where agency approvals are not required.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Installation 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +176ºF (-20ºC to +80ºC)

Specifications Approx Inside Bend Radius

1.7 in | 43.18 mm

Specifications Approx Weight Per 100 Ft

14 lbs | 6.35 kg

Specifications Color

GRAY

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

10002 | LT-140

Specifications Electrical Trade Size

1/4 in | 7 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.245 to 0.260 in | 6.223 to 6.604 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

500 ft | 152.4 m

Specifications Optional Colors

Black

Specifications Outside Diameter

0.445 to 0.460 in | 11.303 to 11.684 mm

Specifications Packaging

Standard Package

Specifications Type

EFST

Metal Conduit Type EFST - Liquid Tight Flexible Conduit 1/4" - 500ft
