Metal Mounting Support Post for Circuit Boards - 4mm Dual Locking Holes
Metal Mounting Support Post for Circuit Boards - 4mm Dual Locking Holes
SKU:01C-26444a
Securely fasten circuit boards with precision using our 27 Series Metal Mounting Support Post featuring 4mm dual locking holes. UL94V-0 compliant Nylon 66 construction for fire resistance. Pack of 1000.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Metal Mounting Support Post for Circuit Boards - 4mm Dual Locking Holes
$49.99
Quantity: 1
Claim Your Seller Account
Metal Mounting Support Post for Circuit Boards - 4mm Dual Locking Holes
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 27 Series Metal Mounting Support Post is designed for secure fastening of circuit boards with 4mm mounting holes at both ends. Each post is crafted from UL94V-0 compliant Nylon 66, ensuring superior fire resistance. With a temperature range of -40 to 185 F, these support posts provide reliable stability in varying environments. Measuring at 18.0mm in length with a 1.6mm panel thickness, they deliver precise mounting support for electronics assemblies. Packaged conveniently in sets of 1000, these support posts are ideal for industrial applications that demand durability and safety.

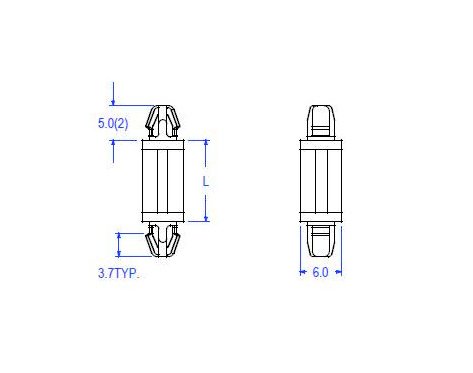

Product Specifications
Specifications Color
White
Specifications Dim L
18.0 ± .38 mm
Specifications Material Code
UL94V-0
Specifications Mounting Hole Diameter
4.0 mm
Specifications Pt Panel Thickness
1.6 mm
Specifications Remarks Panel Thickness
Nominal Thickness, Panel thickness is for both ends.
