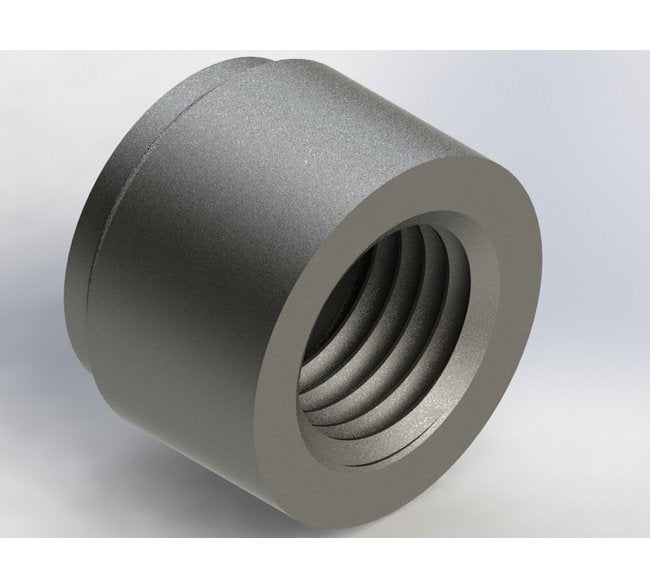

Metal Orifice Inserts - Precision Press-Fit 0.380" OD
Metal Orifice Inserts - Precision Press-Fit 0.380" OD
SKU:PRE-7c0854
Achieve precise flow control with our Precision Metal Orifice Inserts, designed for accuracy and reliability in fluid systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Orifice Inserts - Precision Press-Fit 0.380" OD
$29.99
Quantity: 1
Claim Your Seller Account
Metal Orifice Inserts - Precision Press-Fit 0.380" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid systems with our Precision Metal Orifice Inserts. Designed for press-fit applications, these inserts ensure precise flow control with materials meeting stringent standards like 303 SS construction. Compatible with various fittings and manifolds, our orifices guarantee accuracy and reliability in fluid systems.

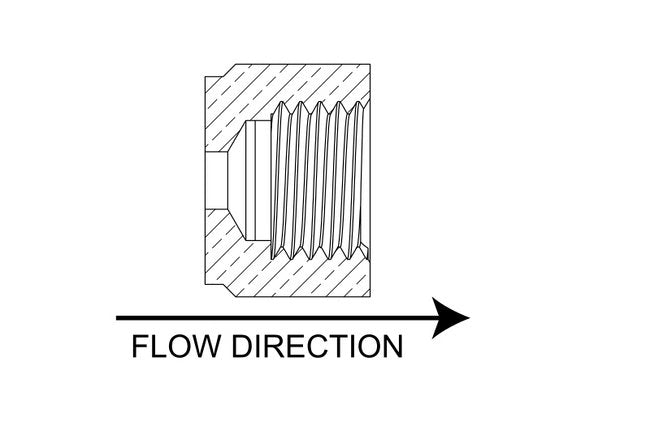

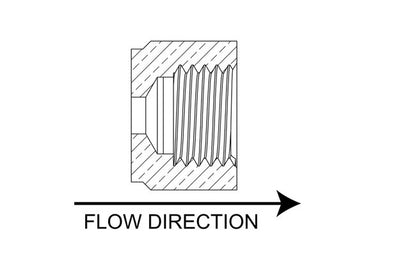

Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

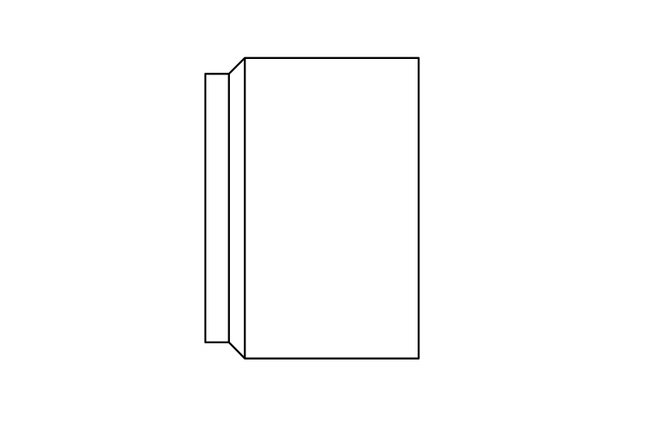

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.04 in | 1.02 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.75 | 5 psig: 21.6 | 10 psig: 30.5 | 15 psig: 37.5 | 20 psig: 44.3 | 25 psig: 50.9 | 30 psig: 57.6 | 40 psig: 71.2 | 50 psig: 85.0 | 60 psig: 99.0 | 70 psig: 113 | 80 psig: 127 | 90 psig: 141 | 100 psig: 156
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.6 | 5 psig (34.5 kPag): 10.2 | 10 psig (69.0 kPag): 14.4 | 15 psig (103.4 kPag): 17.7 | 20 psig (137.9 kPag): 20.9 | 25 psig (172.4 kPag): 24 | 30 psig (206.9 kPag): 27.2 | 40 psig (275.8 kPag): 33.6 | 50 psig (344.8 kPag): 40.1 | 60 psig (413.7 kPag): 46.7 | 70 psig (482.7 kPag): 53.3 | 80 psig (551.6 kPag): 60 | 90 psig (620.6 kPag): 66.7 | 100 psig (689.5 kPag): 73.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 18.3 | 20 In. Hg.: 18.3 | 30 In. Hg.: 18.3
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.66 | 20 In. Hg. (508 Mm. Hg.): 8.66 | 30 In. Hg. (762 Mm. Hg.): 8.66
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 14.3 | 10 In. Hg.: 17.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.76 | 10 In. Hg. (254 Mm. Hg.): 8.31
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.036 | 2 psig: 0.051 | 3 psig: 0.062 | 4 psig: 0.072 | 5 psig: 0.080 | 6 psig: 0.088 | 7 psig: 0.095 | 8 psig: 0.102 | 9 psig: 0.108 | 10 psig: 0.114 | 15 psig: 0.139 | 20 psig: 0.161 | 30 psig: 0.197 | 40 psig: 0.228 | 50 psig: 0.255 | 60 psig: 0.279 | 70 psig: 0.301 | 80 psig: 0.322 | 90 psig: 0.342 | 100 psig: 0.360
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.136 | 2 psig (13.8 kPag): 0.193 | 3 psig (20.7 kPag): 0.236 | 4 psig (27.6 kPag): 0.273 | 5 psig (34.5 kPag): 0.305 | 6 psig (41.4 kPag): 0.334 | 7 psig (48.3 kPag): 0.361 | 8 psig (55.2 kPag): 0.385 | 9 psig (62.1 kPag): 0.409 | 10 psig (69 kPag): 0.431 | 15 psig (103.4 kPag): 0.528 | 20 psig (137.9 kPag): 0.609 | 30 psig (206.9 kPag): 0.746 | 40 psig (275.8 kPag): 0.862 | 50 psig (344.8 kPag): 0.964 | 60 psig (413.7 kPag): 1.056 | 70 psig (482.7 kPag): 1.140 | 80 psig (551.6 kPag): 1.219 | 90 psig (620.6 kPag): 1.293 | 100 psig (689.5 kPag): 1.363
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.036
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
40
Specifications Screened
None
