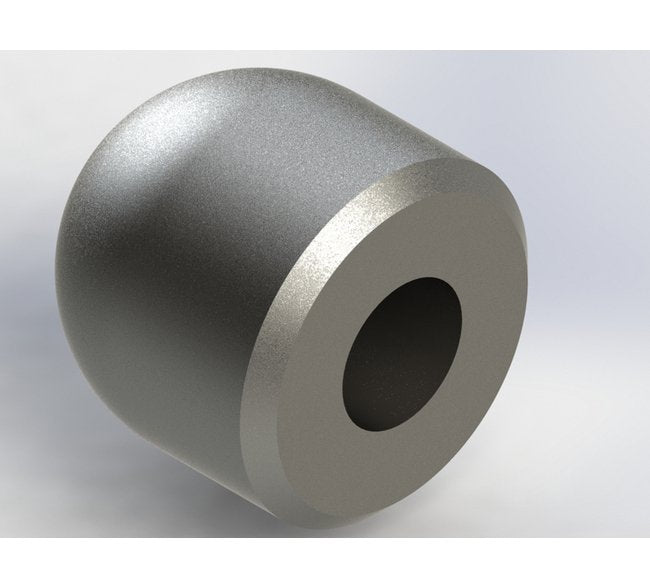

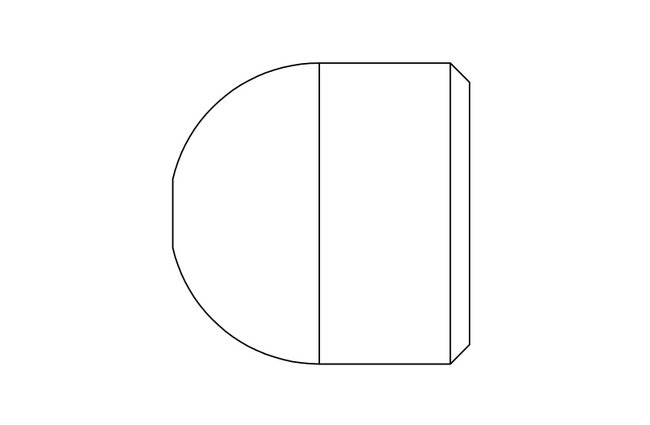

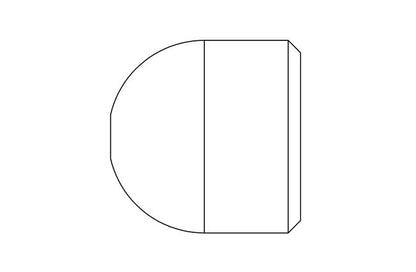

Metal Orifice Press-Fit Inserts 0.061" OD
Metal Orifice Press-Fit Inserts 0.061" OD
SKU:PRE-06f130
High-precision Metal Orifice Inserts for fluid control applications, crafted from durable 303 SS. Ensure accurate flow rate regulation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Orifice Press-Fit Inserts 0.061" OD
$29.99
Quantity: 1
Claim Your Seller Account
Metal Orifice Press-Fit Inserts 0.061" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metal Orifice Press-Fit Inserts are precision-engineered for accurate press-fitting into fittings, manifolds, and custom parts. Constructed with high-quality 303 SS material, these inserts offer precise flow rate control for liquids or gases. With an orifice diameter accuracy of ±0.0005 inches and a maximum operating pressure of 4000 psig, these inserts ensure dependable performance. Ideal for various applications requiring flow rate regulation, these inserts deliver consistent and efficient results in fluid control systems.
Product Specifications
Application 0

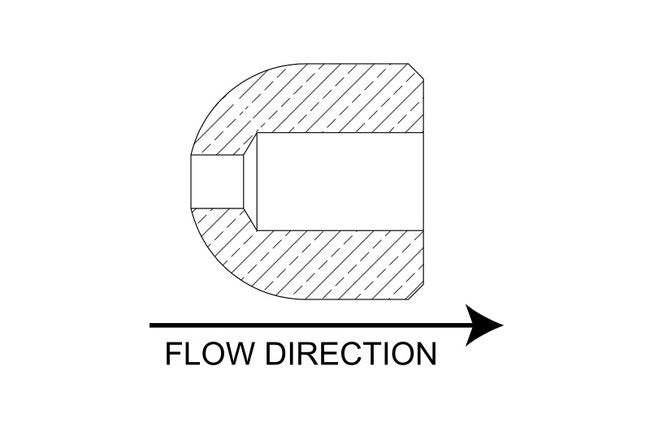

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.0625 in
Dimensions Minimum Outside Diameter
0.0615 in
Dimensions Orifice Diameter
0.02 in | 0.51 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0605 to 0.0610 in
Dimensions Total Length
0.062 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.22 | 5 psig: 5.23 | 10 psig: 6.70 | 15 psig: 8.50 | 20 psig: 10.3 | 25 psig: 11.8 | 30 psig: 13.4 | 40 psig: 16.5 | 50 psig: 19.6 | 60 psig: 22.7 | 70 psig: 25.9 | 80 psig: 29.0 | 90 psig: 32.2 | 100 psig: 35.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.05 | 5 psig (34.5 kPag): 2.47 | 10 psig (69.0 kPag): 3.16 | 15 psig (103.4 kPag): 4.01 | 20 psig (137.9 kPag): 4.84 | 25 psig (172.4 kPag): 5.59 | 30 psig (206.9 kPag): 6.33 | 40 psig (275.8 kPag): 7.81 | 50 psig (344.8 kPag): 9.26 | 60 psig (413.7 kPag): 10.7 | 70 psig (482.7 kPag): 12.2 | 80 psig (551.6 kPag): 13.7 | 90 psig (620.6 kPag): 15.2 | 100 psig (689.5 kPag): 16.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.64 | 20 In. Hg.: 4.64 | 30 In. Hg.: 4.64
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.19 | 20 In. Hg. (508 Mm. Hg.): 2.19 | 30 In. Hg. (762 Mm. Hg.): 2.19
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.28 | 10 In. Hg.: 4.15
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.55 | 10 In. Hg. (254 Mm. Hg.): 1.96
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.009 | 2 psig: 0.012 | 3 psig: 0.015 | 4 psig: 0.018 | 5 psig: 0.020 | 6 psig: 0.022 | 7 psig: 0.023 | 8 psig: 0.025 | 9 psig: 0.026 | 10 psig: 0.028 | 15 psig: 0.034 | 20 psig: 0.039 | 30 psig: 0.048 | 40 psig: 0.056 | 50 psig: 0.062 | 60 psig: 0.068 | 70 psig: 0.074 | 80 psig: 0.079 | 90 psig: 0.083 | 100 psig: 0.088
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.033 | 2 psig (13.8 kPag): 0.047 | 3 psig (20.7 kPag): 0.058 | 4 psig (27.6 kPag): 0.067 | 5 psig (34.5 kPag): 0.074 | 6 psig (41.4 kPag): 0.074 | 7 psig (48.3 kPag): 0.088 | 8 psig (55.2 kPag): 0.094 | 9 psig (62.1 kPag): 0.100 | 10 psig (69 kPag): 0.105 | 15 psig (103.4 kPag): 0.129 | 20 psig (137.9 kPag): 0.149 | 30 psig (206.9 kPag): 0.182 | 40 psig (275.8 kPag): 0.211 | 50 psig (344.8 kPag): 0.236 | 60 psig (413.7 kPag): 0.258 | 70 psig (482.7 kPag): 0.279 | 80 psig (551.6 kPag): 0.298 | 90 psig (620.6 kPag): 0.316 | 100 psig (689.5 kPag): 0.333
Specifications Connection A
.0615" Press-Fit Insert
Specifications Cv
0.0088
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
20
Specifications Screened
None
