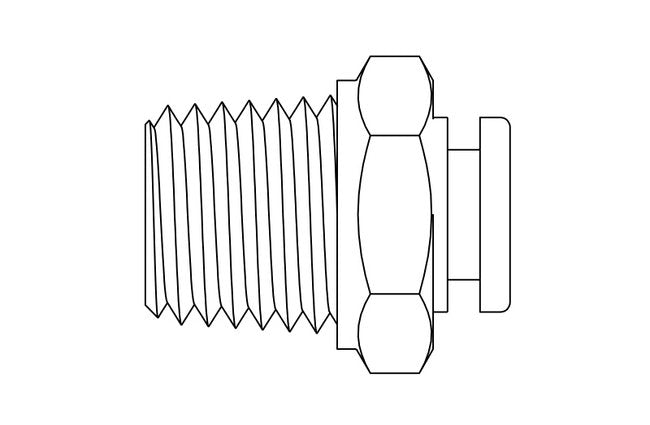

Metal Orifice Tube Adapters, 1/4" NPT x Tube
Metal Orifice Tube Adapters, 1/4" NPT x Tube
SKU:PRE-5b9216
Premium Precision Metal Orifices for precise fluid control in various applications. Compliant with top procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Orifice Tube Adapters, 1/4" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Metal Orifice Tube Adapters, 1/4" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

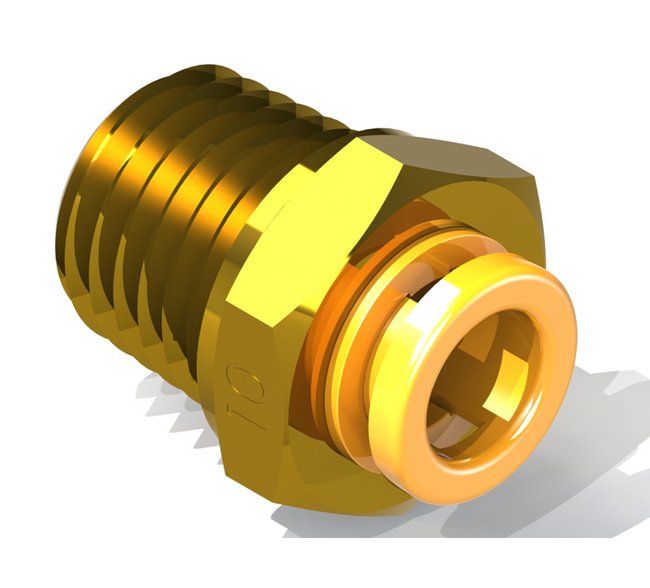

The Precision Metal Orifices - Push-On Tube Adapters are crafted for high precision and durability. Featuring a Brass/Plastic construction with a Buna-N seal, these adapters ensure reliable connections. With a CV of 0.059 and a maximum operating pressure of 140 psig, they deliver consistent performance. Ideal for air and water flow applications, these adapters offer a wide range of flow rates. Compliant with Federal/DoD procurement standards and industry certifications, they meet the most stringent requirements.
Product Specifications
Dimensions Orifice Diameter
0.052 in
Dimensions Total Length
0.91 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 17.00 | 5 psig: 37.3 | 10 psig: 51.9 | 15 psig: 62.9 | 20 psig: 74.2 | 25 psig: 85.4 | 30 psig: 96.6 | 40 psig: 119 | 50 psig: 142 | 60 psig: 165 | 70 psig: 187 | 80 psig: 210 | 90 psig: 231 | 100 psig: 254
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 8.04 | 5 psig (34.5 kPag): 17.6 | 10 psig (69.0 kPag): 24.5 | 15 psig (103.4 kPag): 29.7 | 20 psig (137.9 kPag): 35 | 25 psig (172.4 kPag): 40.3 | 30 psig (206.9 kPag): 45.6 | 40 psig (275.8 kPag): 56.3 | 50 psig (344.8 kPag): 66.9 | 60 psig (413.7 kPag): 77.7 | 70 psig (482.7 kPag): 88.4 | 80 psig (551.6 kPag): 99.1 | 90 psig (620.6 kPag): 109 | 100 psig (689.5 kPag): 120
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 30.5 | 20 In. Hg.: 30.5 | 30 In. Hg.: 30.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 14.4 | 20 In. Hg. (508 Mm. Hg.): 14.4 | 30 In. Hg. (762 Mm. Hg.): 14.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 23.9 | 10 In. Hg.: 29.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 11.3 | 10 In. Hg. (254 Mm. Hg.): 13.9
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.059 | 2 psig: 0.083 | 3 psig: 0.102 | 4 psig: 0.118 | 5 psig: 0.132 | 6 psig: 0.145 | 7 psig: 0.156 | 8 psig: 0.167 | 9 psig: 0.177 | 10 psig: 0.187 | 15 psig: 0.229 | 20 psig: 0.264 | 30 psig: 0.323 | 40 psig: 0.373 | 50 psig: 0.417 | 60 psig: 0.457 | 70 psig: 0.494 | 80 psig: 0.528 | 90 psig: 0.560 | 100 psig: 0.590
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.223 | 2 psig (13.8 kPag): 0.316 | 3 psig (20.7 kPag): 0.387 | 4 psig (27.6 kPag): 0.447 | 5 psig (34.5 kPag): 0.499 | 6 psig (41.4 kPag): 0.547 | 7 psig (48.3 kPag): 0.591 | 8 psig (55.2 kPag): 0.632 | 9 psig (62.1 kPag): 0.67 | 10 psig (69 kPag): 0.706 | 15 psig (103.4 kPag): 0.865 | 20 psig (137.9 kPag): 0.999 | 30 psig (206.9 kPag): 1.223 | 40 psig (275.8 kPag): 1.413 | 50 psig (344.8 kPag): 1.579 | 60 psig (413.7 kPag): 1.730 | 70 psig (482.7 kPag): 1.869 | 80 psig (551.6 kPag): 1.998 | 90 psig (620.6 kPag): 2.119 | 100 psig (689.5 kPag): 2.233
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.059
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
52
Specifications Screened
None
Specifications Seal Material
Buna-N
