Metal Orifice Tube Adapters, 1/8" NPT x Tube
Metal Orifice Tube Adapters, 1/8" NPT x Tube
SKU:PRE-00637d
Achieve precision flow control with our Metal Orifice Tube Adapters for reliable air and water flow in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Claim Your Seller Account
Metal Orifice Tube Adapters, 1/8" NPT x Tube
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

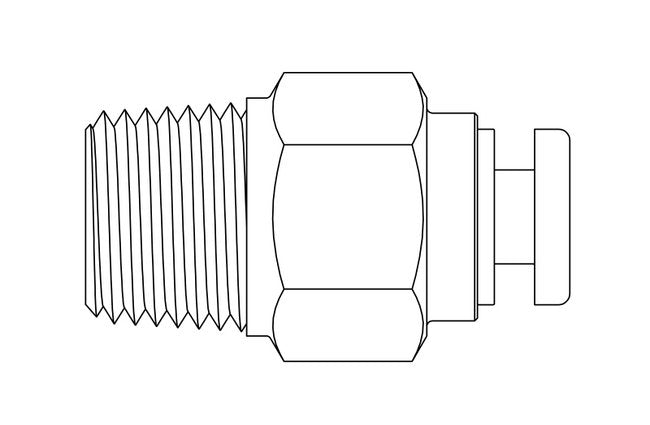

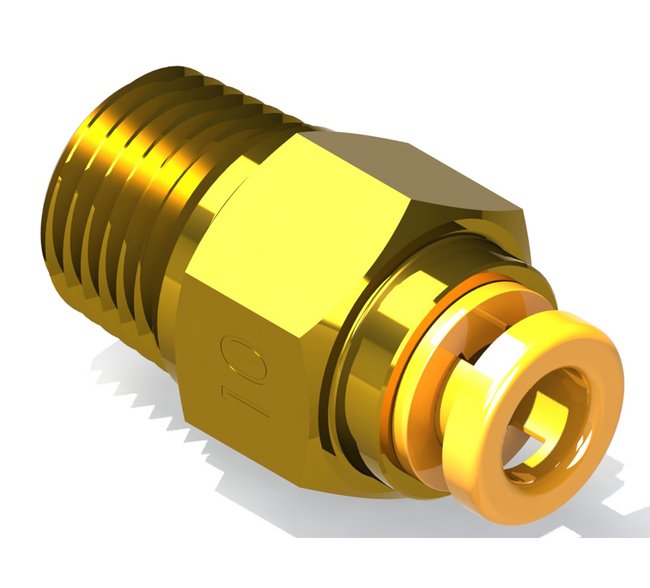

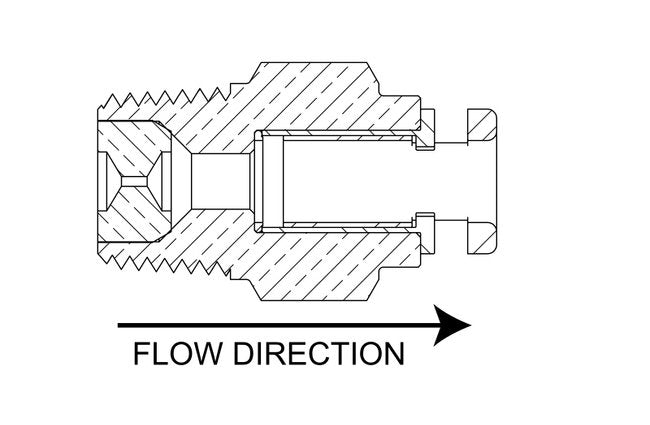

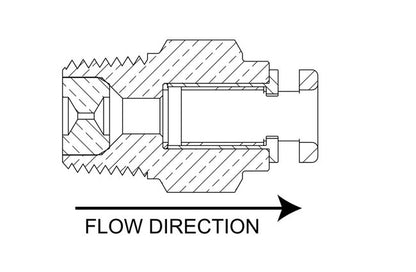

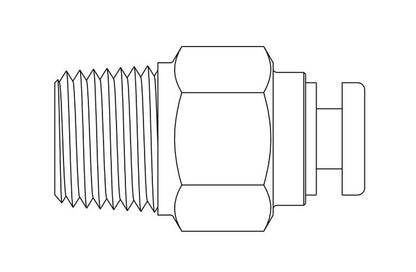

Enhance precision control with our Metal Orifice Tube Adapters, crafted from durable brass and plastic materials. Featuring a 0.022 inch orifice diameter and a maximum operating pressure of 140 psig, these adapters ensure optimal air and water flow. With 1/8" NPT male and 5/32" OD tube push-lock connections, they offer versatile usage. Compliant with federal procurement standards, these adapters deliver reliable performance in demanding environments.
Product Specifications
Dimensions Orifice Diameter
0.022 in
Dimensions Total Length
0.87 in
Dimensions Width Across Flats Hex
7/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.73 | 5 psig: 6.29 | 10 psig: 9.17 | 15 psig: 11.3 | 20 psig: 13.5 | 25 psig: 15.5 | 30 psig: 17.4 | 40 psig: 21.4 | 50 psig: 25.2 | 60 psig: 29.2 | 70 psig: 33.1 | 80 psig: 37.1 | 90 psig: 40.9 | 100 psig: 44.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.29 | 5 psig (34.5 kPag): 2.97 | 10 psig (69.0 kPag): 4.33 | 15 psig (103.4 kPag): 5.35 | 20 psig (137.9 kPag): 6.35 | 25 psig (172.4 kPag): 7.30 | 30 psig (206.9 kPag): 8.23 | 40 psig (275.8 kPag): 10.1 | 50 psig (344.8 kPag): 11.9 | 60 psig (413.7 kPag): 13.8 | 70 psig (482.7 kPag): 15.6 | 80 psig (551.6 kPag): 17.5 | 90 psig (620.6 kPag): 19.3 | 100 psig (689.5 kPag): 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 5.53 | 20 In. Hg.: 5.53 | 30 In. Hg.: 5.53
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.61 | 20 In. Hg. (508 Mm. Hg.): 2.61 | 30 In. Hg. (762 Mm. Hg.): 2.61
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.03 | 10 In. Hg.: 5.17
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.90 | 10 In. Hg. (254 Mm. Hg.): 2.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.011 | 2 psig: 0.016 | 3 psig: 0.019 | 4 psig: 0.022 | 5 psig: 0.025 | 6 psig: 0.027 | 7 psig: 0.029 | 8 psig: 0.031 | 9 psig: 0.033 | 10 psig: 0.035 | 15 psig: 0.043 | 20 psig: 0.049 | 30 psig: 0.060 | 40 psig: 0.070 | 50 psig: 0.078 | 60 psig: 0.085 | 70 psig: 0.092 | 80 psig: 0.098 | 90 psig: 0.104 | 100 psig: 0.110
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.042 | 2 psig (13.8 kPag): 0.059 | 3 psig (20.7 kPag): 0.072 | 4 psig (27.6 kPag): 0.083 | 5 psig (34.5 kPag): 0.093 | 6 psig (41.4 kPag): 0.093 | 7 psig (48.3 kPag): 0.110 | 8 psig (55.2 kPag): 0.118 | 9 psig (62.1 kPag): 0.125 | 10 psig (69 kPag): 0.132 | 15 psig (103.4 kPag): 0.161 | 20 psig (137.9 kPag): 0.186 | 30 psig (206.9 kPag): 0.228 | 40 psig (275.8 kPag): 0.263 | 50 psig (344.8 kPag): 0.294 | 60 psig (413.7 kPag): 0.323 | 70 psig (482.7 kPag): 0.348 | 80 psig (551.6 kPag): 0.372 | 90 psig (620.6 kPag): 0.395 | 100 psig (689.5 kPag): 0.416
Specifications Connection A
1/8" NPT Male
Specifications Connection B
5/32" OD Tube Push-Lock
Specifications Cv
0.011
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
22
Specifications Screened
None
Specifications Seal Material
Buna-N
