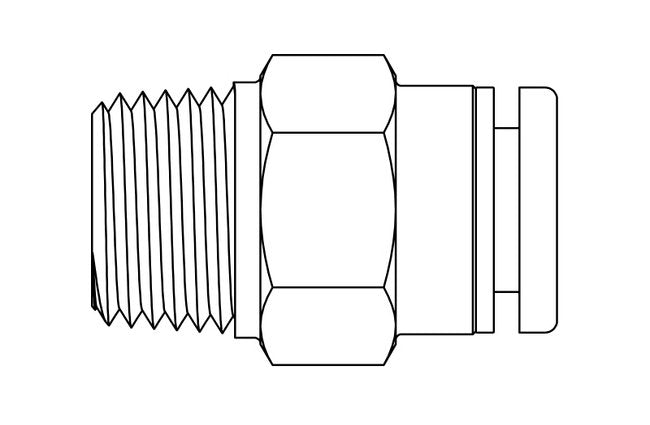

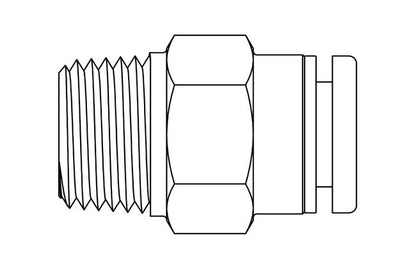

Metal Orifice Tube Adapters, 1/8" NPT x Tube
Metal Orifice Tube Adapters, 1/8" NPT x Tube
SKU:PRE-c24b6f
Enhance fluid control with Precision Metal Orifices, designed for industrial-grade precision and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Orifice Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Claim Your Seller Account
Metal Orifice Tube Adapters, 1/8" NPT x Tube
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

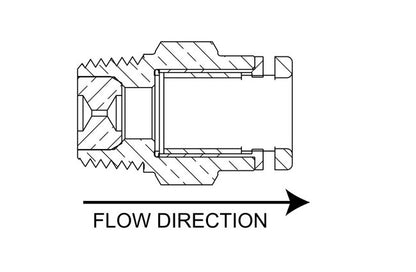

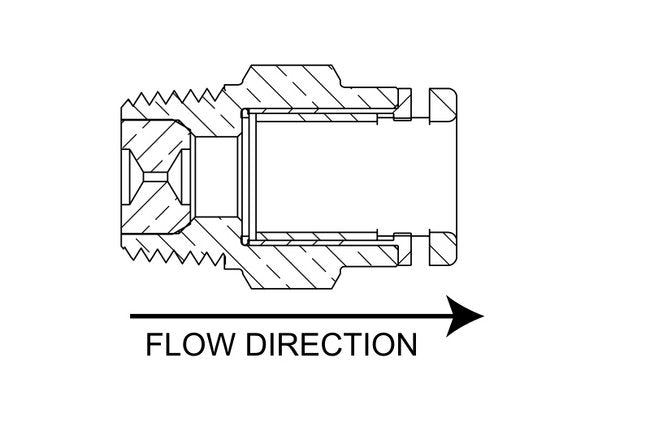

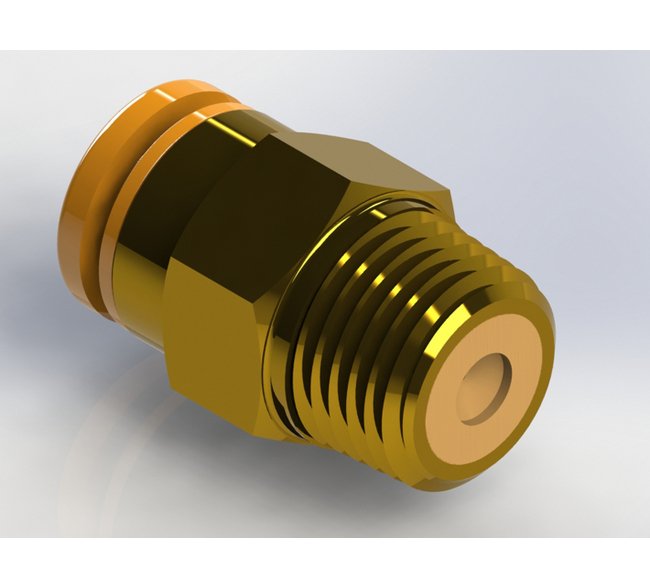

Upgrade your fluid control system with these Precision Metal Orifices - Push-On Tube Adapters. Expertly crafted from Brass/Plastic, these adapters ensure precision with an Orifice Diameter of 0.038 in, Maximum Operating Pressure of 140 psig, and unmatched durability. Perfect for industrial applications requiring high performance and reliability. Compliant with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications
Dimensions Orifice Diameter
0.038 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.75 | 5 psig: 19.3 | 10 psig: 26.5 | 15 psig: 32.6 | 20 psig: 38.4 | 25 psig: 44.1 | 30 psig: 50.0 | 40 psig: 67.2 | 50 psig: 73.7 | 60 psig: 86.0 | 70 psig: 98.1 | 80 psig: 110 | 90 psig: 122 | 100 psig: 135
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.13 | 5 psig (34.5 kPag): 9.09 | 10 psig (69.0 kPag): 12.5 | 15 psig (103.4 kPag): 15.4 | 20 psig (137.9 kPag): 18.1 | 25 psig (172.4 kPag): 20.8 | 30 psig (206.9 kPag): 23.6 | 40 psig (275.8 kPag): 31.7 | 50 psig (344.8 kPag): 34.8 | 60 psig (413.7 kPag): 40.6 | 70 psig (482.7 kPag): 46.3 | 80 psig (551.6 kPag): 52.1 | 90 psig (620.6 kPag): 57.8 | 100 psig (689.5 kPag): 63.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 16.2 | 20 In. Hg.: 16.2 | 30 In. Hg.: 16.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.63 | 20 In. Hg. (508 Mm. Hg.): 7.63 | 30 In. Hg. (762 Mm. Hg.): 7.63
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 12.3 | 10 In. Hg.: 15.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.81 | 10 In. Hg. (254 Mm. Hg.): 7.29
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.032 | 2 psig: 0.045 | 3 psig: 0.055 | 4 psig: 0.064 | 5 psig: 0.072 | 6 psig: 0.078 | 7 psig: 0.085 | 8 psig: 0.091 | 9 psig: 0.096 | 10 psig: 0.101 | 15 psig: 0.124 | 20 psig: 0.143 | 30 psig: 0.175 | 40 psig: 0.202 | 50 psig: 0.226 | 60 psig: 0.248 | 70 psig: 0.268 | 80 psig: 0.286 | 90 psig: 0.304 | 100 psig: 0.320
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.121 | 2 psig (13.8 kPag): 0.171 | 3 psig (20.7 kPag): 0.210 | 4 psig (27.6 kPag): 0.242 | 5 psig (34.5 kPag): 0.271 | 6 psig (41.4 kPag): 0.297 | 7 psig (48.3 kPag): 0.320 | 8 psig (55.2 kPag): 0.343 | 9 psig (62.1 kPag): 0.363 | 10 psig (69 kPag): 0.383 | 15 psig (103.4 kPag): 0.469 | 20 psig (137.9 kPag): 0.542 | 30 psig (206.9 kPag): 0.663 | 40 psig (275.8 kPag): 0.766 | 50 psig (344.8 kPag): 0.857 | 60 psig (413.7 kPag): 0.938 | 70 psig (482.7 kPag): 1.013 | 80 psig (551.6 kPag): 1.083 | 90 psig (620.6 kPag): 1.149 | 100 psig (689.5 kPag): 1.211
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.032
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
38
Specifications Screened
None
Specifications Seal Material
Buna-N
