Metal Press-Fit Inserts 0.094" Precision Orifices
Metal Press-Fit Inserts 0.094" Precision Orifices
SKU:PRE-bde84b
Enhance fluid control with our high-precision 0.094" Metal Press-Fit Inserts for accurate flow rate control in industrial settings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metal Press-Fit Inserts 0.094" Precision Orifices
$24.99
Quantity: 1
Claim Your Seller Account
Metal Press-Fit Inserts 0.094" Precision Orifices
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

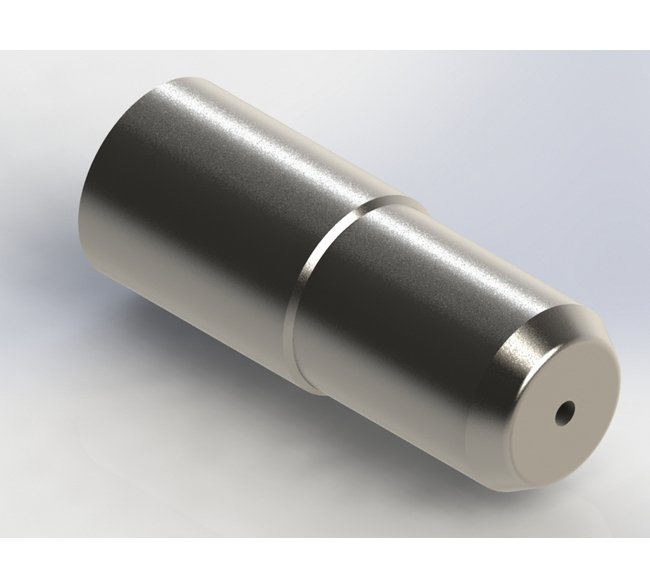

Elevate your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Crafted from high-grade 303 SS, these inserts guarantee precise flow rate control for liquids or gases. With an accurate orifice diameter of 0.094" (+/- 0.0005" accuracy), and a press-fit range from 0.093" to 0.094", they ensure seamless integration into fittings and custom parts. Trusted for their CV of 0.012 and 4000 psig maximum operating pressure, these inserts offer superior performance and reliability. Perfect for manifolds and custom assemblies, these orifices are ideal for meeting rigorous standards in industrial applications.
Product Specifications
Application 0

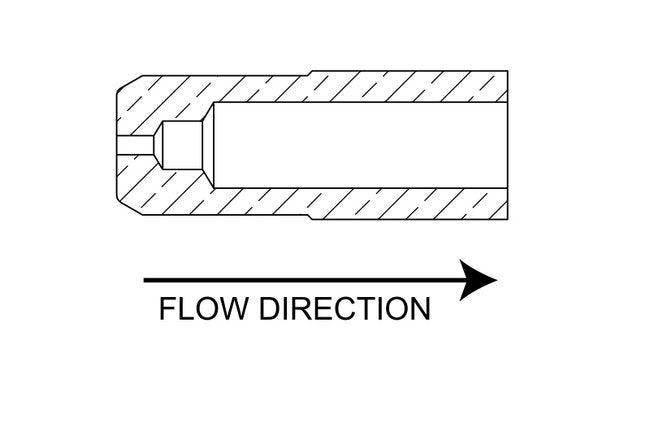

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

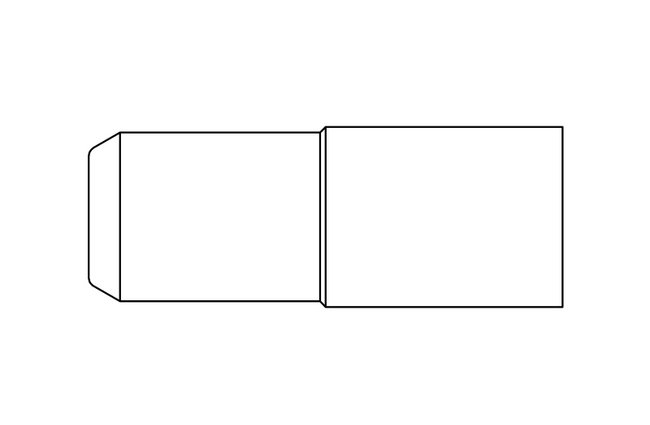

Dimensions Maximum Outside Diameter
0.0950 in
Dimensions Minimum Outside Diameter
0.0945 in
Dimensions Orifice Diameter
0.023 in | 0.58 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0930 to 0.0940 in
Dimensions Shank Length
0.125 in
Dimensions Total Length
0.25 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.99 | 5 psig: 6.87 | 10 psig: 10.1 | 15 psig: 12.6 | 20 psig: 14.7 | 25 psig: 16.8 | 30 psig: 19.0 | 40 psig: 23.3 | 50 psig: 27.5 | 60 psig: 31.8 | 70 psig: 36.0 | 80 psig: 40.3 | 90 psig: 44.5 | 100 psig: 48.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.41 | 5 psig (34.5 kPag): 3.24 | 10 psig (69.0 kPag): 4.75 | 15 psig (103.4 kPag): 5.93 | 20 psig (137.9 kPag): 6.95 | 25 psig (172.4 kPag): 7.95 | 30 psig (206.9 kPag): 8.98 | 40 psig (275.8 kPag): 11.0 | 50 psig (344.8 kPag): 13.0 | 60 psig (413.7 kPag): 15.0 | 70 psig (482.7 kPag): 17.0 | 80 psig (551.6 kPag): 19.0 | 90 psig (620.6 kPag): 21.0 | 100 psig (689.5 kPag): 23.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.04 | 20 In. Hg.: 6.04 | 30 In. Hg.: 6.04
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.85 | 20 In. Hg. (508 Mm. Hg.): 2.85 | 30 In. Hg. (762 Mm. Hg.): 2.85
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.45 | 10 In. Hg.: 5.68
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.10 | 10 In. Hg. (254 Mm. Hg.): 2.68
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.012 | 2 psig: 0.017 | 3 psig: 0.021 | 4 psig: 0.024 | 5 psig: 0.027 | 6 psig: 0.029 | 7 psig: 0.032 | 8 psig: 0.034 | 9 psig: 0.036 | 10 psig: 0.038 | 15 psig: 0.046 | 20 psig: 0.054 | 30 psig: 0.066 | 40 psig: 0.076 | 50 psig: 0.085 | 60 psig: 0.093 | 70 psig: 0.100 | 80 psig: 0.107 | 90 psig: 0.114 | 100 psig: 0.120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.045 | 2 psig (13.8 kPag): 0.064 | 3 psig (20.7 kPag): 0.079 | 4 psig (27.6 kPag): 0.091 | 5 psig (34.5 kPag): 0.102 | 6 psig (41.4 kPag): 0.102 | 7 psig (48.3 kPag): 0.120 | 8 psig (55.2 kPag): 0.128 | 9 psig (62.1 kPag): 0.136 | 10 psig (69 kPag): 0.144 | 15 psig (103.4 kPag): 0.176 | 20 psig (137.9 kPag): 0.203 | 30 psig (206.9 kPag): 0.249 | 40 psig (275.8 kPag): 0.287 | 50 psig (344.8 kPag): 0.321 | 60 psig (413.7 kPag): 0.352 | 70 psig (482.7 kPag): 0.380 | 80 psig (551.6 kPag): 0.406 | 90 psig (620.6 kPag): 0.431 | 100 psig (689.5 kPag): 0.454
Specifications Connection A
.0945" Press-Fit Insert
Specifications Cv
0.012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
23
Specifications Screened
None
