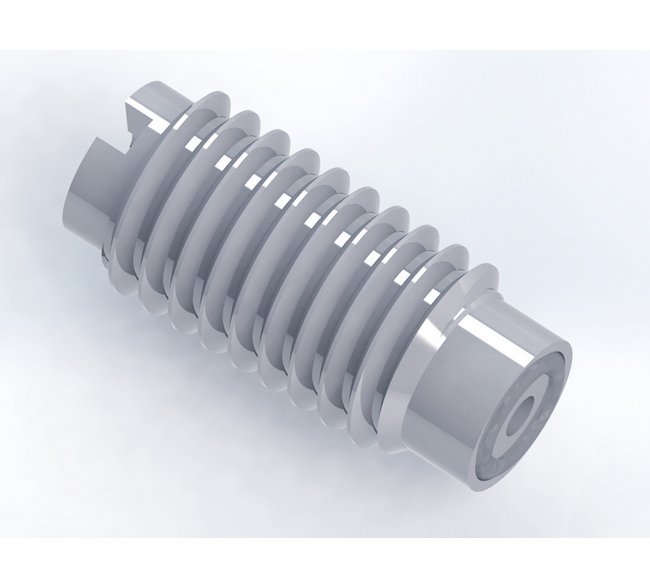

Metal Seat Threaded Insert Ball Check Valve
Metal Seat Threaded Insert Ball Check Valve
SKU:CHE-cb6ef7
High-performance Metal Seat Threaded Insert Ball Check Valve for industrial applications. Durable 303/304 stainless steel construction with precise flow control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Seat Threaded Insert Ball Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
Metal Seat Threaded Insert Ball Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metal Seat Threaded Insert Ball Check Valve is expertly designed for reliable performance in industrial applications. Constructed with high-grade 303 stainless steel and a 304 stainless steel ball, this valve ensures durability and corrosion resistance. With a cracking pressure of 0 psid and a maximum operating pressure of 125 psig, it guarantees precise flow control. The male threaded insert with O-ring seal ensures a secure connection. Ideal for high-temperature environments up to 150°F, this valve offers optimal functionality and longevity in demanding settings.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cracking Pressure
0 psid
Specifications Cv
0.02
Specifications Material
303 SS
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Thread
Male
