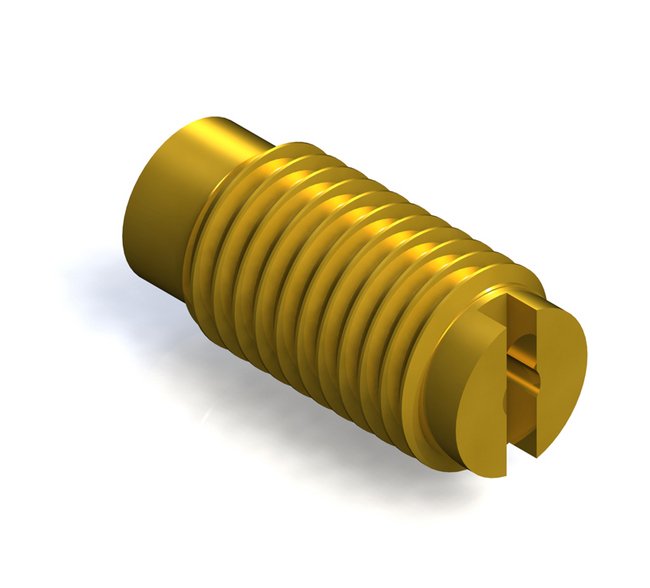

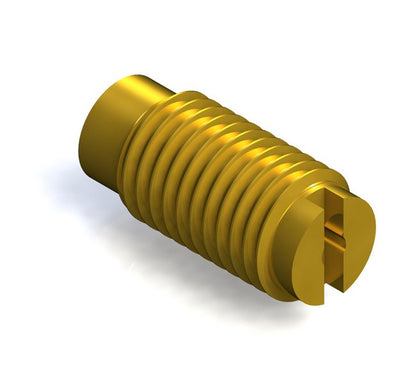

Metal Seat Threaded Insert Ball Type Check Valve
Metal Seat Threaded Insert Ball Type Check Valve
SKU:CHE-bb0071
Durable metal seat check valve with brass construction, 304 SS ball, and male threaded connection. Ideal for high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metal Seat Threaded Insert Ball Type Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
Metal Seat Threaded Insert Ball Type Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metal Seat Threaded Insert Ball Type Check Valve is crafted with high-quality brass and a 304 stainless steel ball, ensuring durability and reliable performance. With a CV of 0.081 and a maximum temperature of 300°F, this valve can withstand pressures up to 200 psig. Featuring a male threaded connection and a 5/16-24 UNF Threaded Insert O-ring seal, it minimizes seat leakage to 20 SSCM at 25 psi differential. The compact design with dimensions of 0.669 inches total length makes it ideal for various industrial applications, providing secure and efficient flow control.
Product Specifications
Dimensions Thread Size
5/16-24
Dimensions Total Length
0.669 in
Specifications Ball Material
304 SS
Specifications Connection A
5/16-24 UNF Threaded Insert O-ring seal
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
