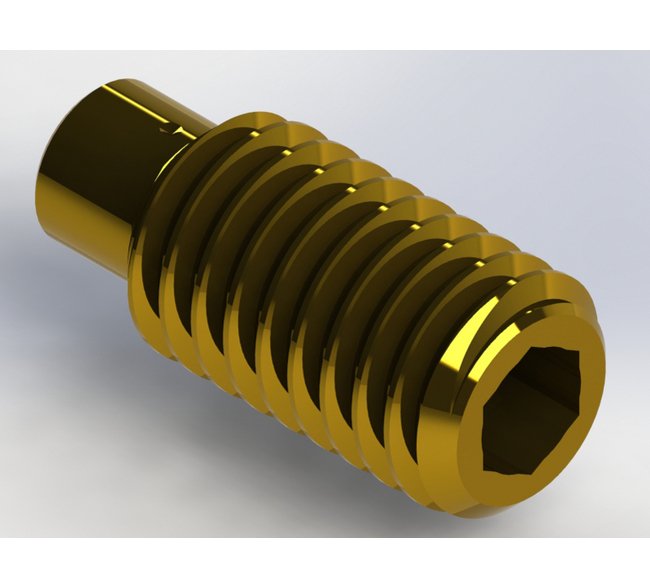

Metal Threaded Insert Check Valves with Fluorocarbon Seal

Name: Metal Threaded Insert Check Valves with Fluorocarbon Seal
Brand: O'Keefe Controls Co.
SKU: CHE-589407
Price: 49.99 USD
Availability: OutOfStock

SKU:CHE-589407

Premium Metal Threaded Insert Check Valves with Fluorocarbon Seal, optimal pressure control & minimal leakage.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metal Threaded Insert Check Valves with Fluorocarbon Seal offer reliable performance with 303 SS construction and a 440C-SS Ball for durability. Featuring a seal material of Fluorocarbon, these valves ensure a tight seal, preventing leaks. With a maximum operating pressure of 1400 kPa and low seat leakage, they meet industry standards for long-lasting, cost-effective operation. Ideal for institutional applications requiring precision and efficiency.

Product Specifications

Dimensions Nose Diameter

2.29 mm

Dimensions Orifice Diameter

0.016 in | 0.41 mm

Dimensions Thread Size

M3.5

Dimensions Total Length

7.87 mm

Dimensions Width Across Flats Hex

2 mm

Features Features

All metal construction option Long life operation Low cost

Specifications Ball Material

440C-SS

Specifications Connection A

M3.5 Threaded Insert O-Ring seal

Specifications Cv

0.0055

Specifications Hex Type

Internal

Specifications Material

303 SS

Specifications Maximum Operating Pressure

1400 kPa

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Fluorocarbon

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Specifications Thread

Male

Metal Threaded Insert Check Valves with Fluorocarbon Seal
