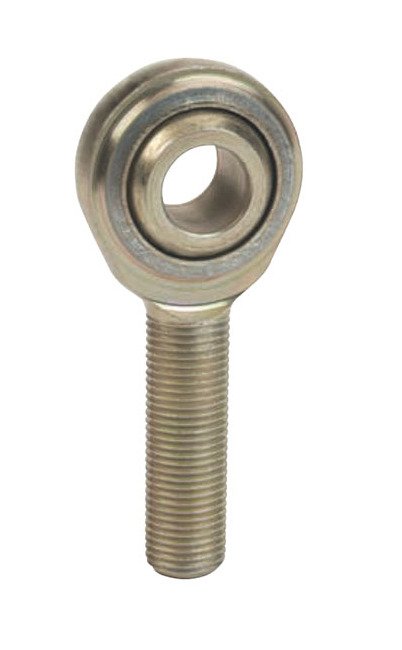

Metal to Metal Rod End LH EF/EM - 1/2-20 UNF-2A

Name: Metal to Metal Rod End LH EF/EM - 1/2-20 UNF-2A
Brand: Lexco Cable Manufacturing
SKU: PUS-ffba7e
Price: 32.99 USD
Availability: OutOfStock

SKU:PUS-ffba7e

Economical and durable Metal to Metal Rod End LH EF/EM - ideal for various mechanical motion transfer applications.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metal to Metal Rod End LH EF/EM is a reliable solution for numerous mechanical motion transfer applications in industries like construction and lawn and garden. With a 2-piece metal to metal design, this rod end provides economical yet durable performance with its suitability for higher axial loads, exceptional side loading strength, and wide temperature range from -65 Ã‚ÂºF to 250 Ã‚ÂºF (-54 Ã‚ÂºC to 121 Ã‚ÂºC). Custom assemblies can be tailored to specific requirements, meeting SAE spec J1120 standards.

Product Specifications

Applications 0

Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus

Features 0

2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ÂºF - 250 ÂºF(-54 ÂºC - 121 ÂºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120

Material 0

Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

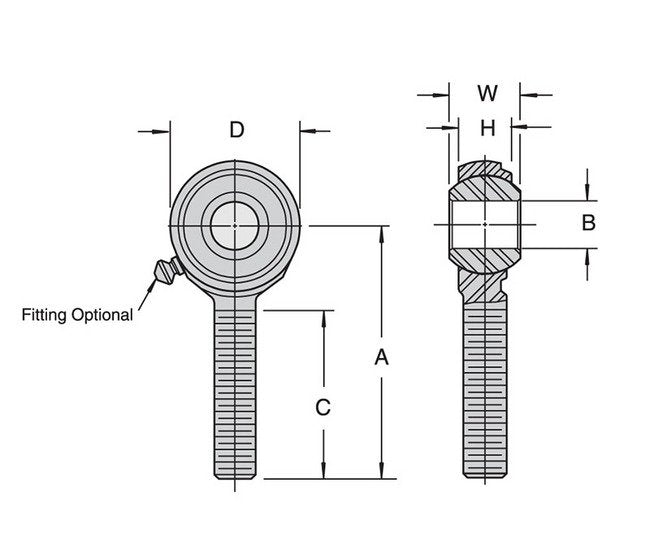

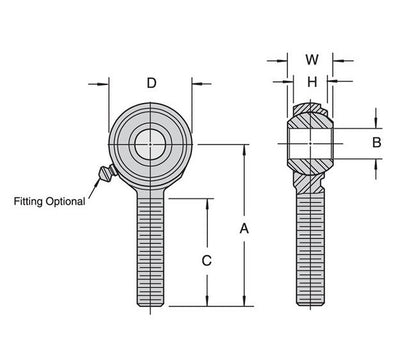

Specifications Ball Bore B 00020 00000

0.5000 "

Specifications Ball Diameter Ref

0.938 "

Specifications Ball Width W 0005

0.625 "

Specifications Centerline Length A 0015

2.437 "

Specifications Head Diameter D 0015

1.312 "

Specifications Housing Width H Ref

0.500 "

Specifications Note

For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S

Specifications Temperature Range

-65 to 250 ÂºF | -54 to 121 ÂºC

Specifications Thread Length C 0060

1.500 "

Specifications Thread Size Unf 2a

1/2-20 "

Specifications Type

Male

Specifications Ultimate Radial Static Load Capacity

8690 lb

Specifications Weight

0.240 lb

Studded Dimensions L Ref

0.875 "

Studded Dimensions Min Thread Length S

1.000 "

Studded Dimensions P 0030

1.125 "

Studded Dimensions Rod End Bore Size

1/2 "

Studded Dimensions Thread Size N Unf 2a

1/2-20 "

CAGE

0T9L4

NAICS

332510

PSC

4030
