Metallic Ball Valve Diaphragm Pump - S05 Top Discharge
Metallic Ball Valve Diaphragm Pump - S05 Top Discharge
SKU:PRO-1e7725
Portable and durable S05 Metallic Ball Valve Diaphragm Pump with TPE/PTFE options and 15 gpm flow rate.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Metallic Ball Valve Diaphragm Pump - S05 Top Discharge
$799.99
Quantity: 1
Claim Your Seller Account
Metallic Ball Valve Diaphragm Pump - S05 Top Discharge
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

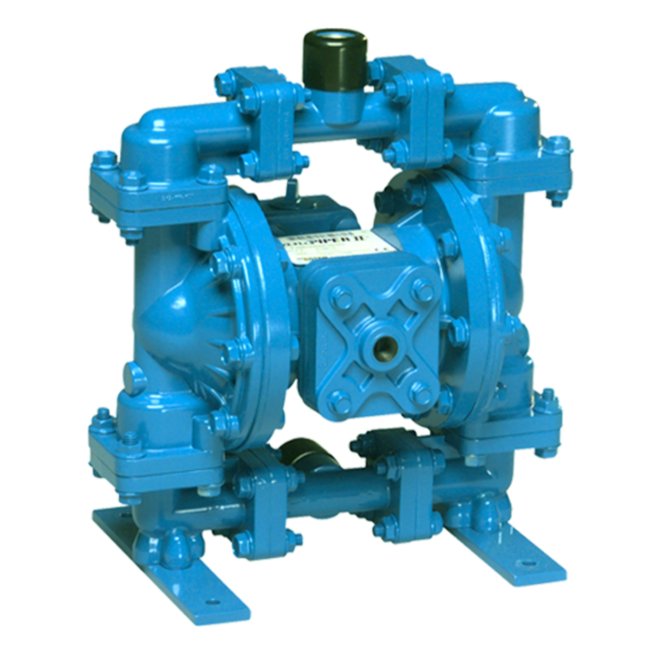

The S05 Metallic Ball Valve Diaphragm Pump is designed for portable, intermittent pumping of moderately abrasive fluids and suspended solids. Featuring TPE and PTFE options, it ensures reliable performance. With a stainless steel wetted M.O.C., Santoprene®/Santoprene® elastomers, and UHMW Polyethylene check valve seat, it meets stringent durability standards for industrial applications. This pump, with a ball check valve type and top discharge port, offers a max flow rate of 15 gpm, making it ideal for standard duty diaphragm pump needs.
Product Specifications
Curves 0

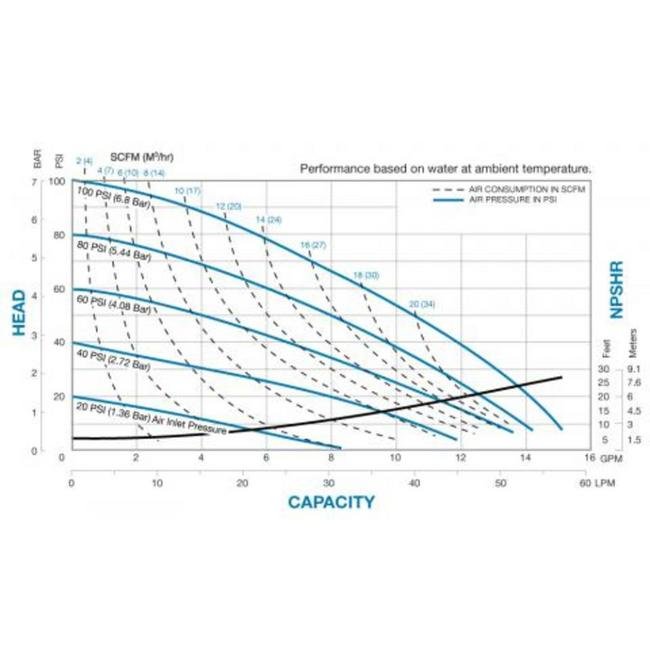

Performance Curves
Specifications Check Valve Seat
UHMW Polyethylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene®/Santoprene®
Specifications Height
11 in | 267.72 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Length
12 in | 292.10 mm
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B1S1WANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
21 lbs | 10 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
7 in | 185.74 mm
Category 6
Standard Duty Diaphragm Pumps
