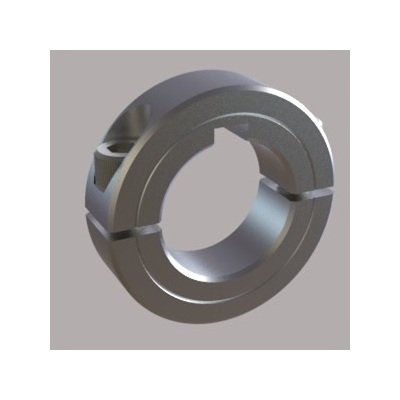

Metric 2-Piece Split Weldable Shaft Collar with Keyway, 30mm Bore

Name: Metric 2-Piece Split Weldable Shaft Collar with Keyway, 30mm Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-ac337c
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-ac337c

Precision-made Metric 2-Piece Split Weldable Shaft Collar with Keyway, 1018 steel construction. Offers superior holding power and easy adjustment. Ideal for industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric 2-Piece Split Weldable Shaft Collar with Keyway, featuring 1018 steel construction, offers ease and safety in welding applications. Fully metric with clamp screws, this collar can be placed anywhere on a shaft, protecting it with a smooth bore. With superior holding power and precision machining, it ensures high clamping power while being lead-free for safer welding. The low-profile design enhances versatility for various shaft types, making it a reliable choice for industrial applications.

Product Specifications

Dimensional Attributes Bore Size

30 mm

Dimensional Attributes Keyway

8 mm

Dimensional Attributes Outside Diameter

54 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1018

Specifications Approximate Weight

0.28 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2MWM030K

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Screw Material

Alloy Steel

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786042225
