Upgrade your metal sheet installations with the durable Metric Captive Panel Screw-Low Profile Knob PF30-PF32 that meets ANSI/ASME B1.13M standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

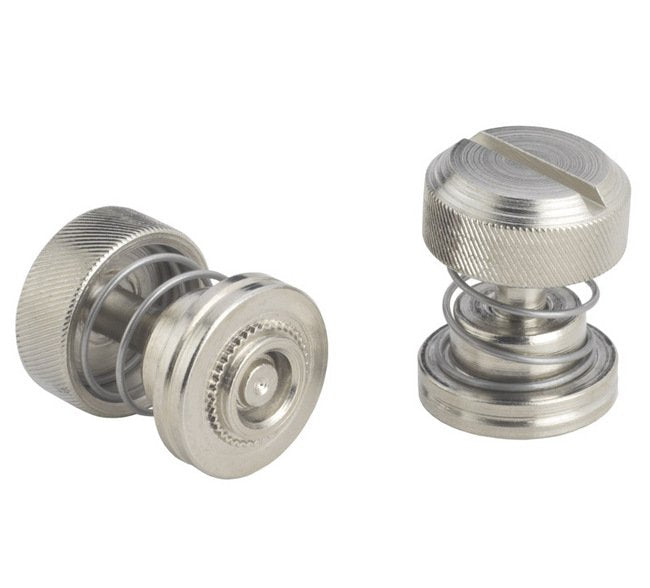

Enhance your metal sheet installations with the Metric Captive Panel Screw-Low Profile Knob PF30-PF32. Crafted from high-quality materials like heat-treated carbon steel and 300 series stainless steel, this screw offers durability and reliability. With a low-profile design and a large slotted head for easy operation, it meets both functional and cosmetic requirements. The screw also complies with ANSI/ASME B1.13M standards. Upgrade your fastening solutions with this precision-engineered screw.

Product Specifications

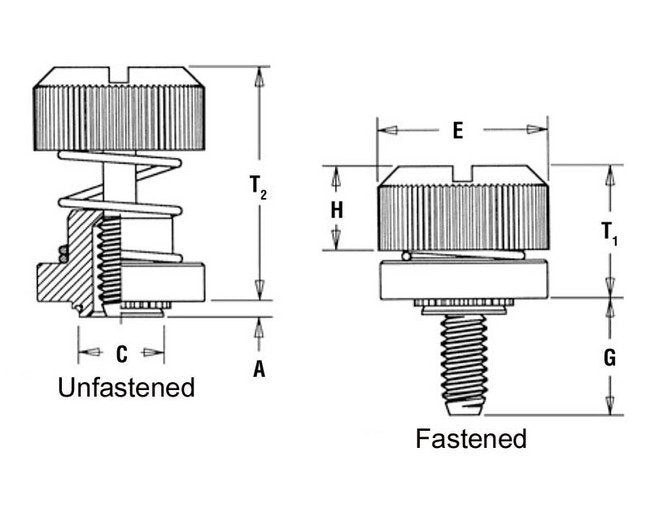

Specifications A Shank Max

1.48 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications Cad View

Unfastened

Specifications C Max

5.48 mm

Specifications E 025

10.31 mm

Specifications Finish Retainer

Bright Nickel over Copper Flash per ASTM B689

Specifications Finish Screw

Bright nickel over copper flash per ASTM B689

Specifications Finish Spring

Natural Finish

Specifications For Use In Sheet Hardness

HRB 60 or Less (Hardness Rockwell âBâ Scale)HB 107 or Less (Hardness Brinell)

Specifications G 04

7.62 mm

Specifications Hole Size In Sheet 008

5.5 mm

Specifications H 013

5.13 mm

Specifications Material Retainer

Carbon Steel

Specifications Material Screw

Heat-Treated Carbon Steel

Specifications Material Spring

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

6.60 mm

Specifications Min Sheet Thickness

1.50 mm

Specifications Optional Finish

Screw â Black NitrideRetainer â Black Nitride

Specifications Screw Length Code

Specifications T1 Max

8.26 mm

Specifications T2 Nom

15.11 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6g

Specifications Type

PF32
