Metric Captive Panel Screw PF7MF - Spring-loaded Flare Mount
Metric Captive Panel Screw PF7MF - Spring-loaded Flare Mount
SKU:PEM-507a72
Secure Metric Captive Panel Screw PF7MF with Spring-loaded Flare Mount for easy installation & flush fit. ASME B1.13M compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Metric Captive Panel Screw PF7MF - Spring-loaded Flare Mount
$12.99
Quantity: 1
Claim Your Seller Account
Metric Captive Panel Screw PF7MF - Spring-loaded Flare Mount
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

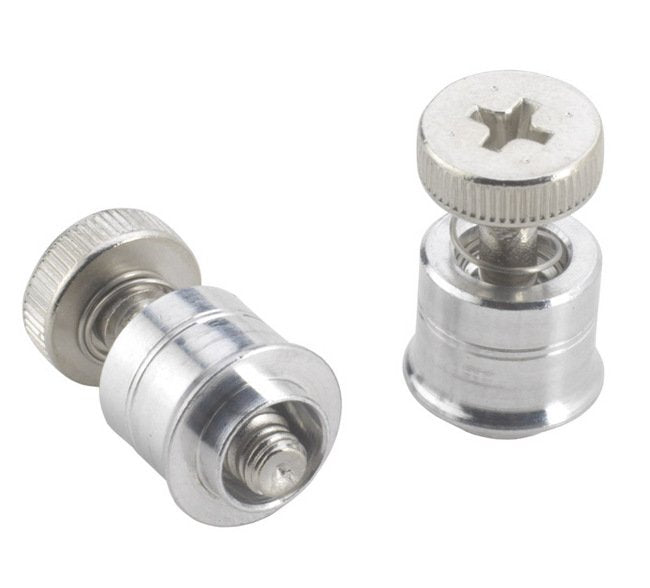

The Metric Captive Panel Screw PF7MF with a Spring-loaded Flare Mount is designed for close centerline-to-edge applications with easy installation and compatibility with various panel hardness. This screw ensures a flush fit on the back side of the panel, providing a secure and reliable fastening solution. Crafted from premium materials like Heat-Treated Carbon Steel, Aluminum Retainer, and 300 Series Stainless Steel Spring, this screw guarantees longevity and durability. Compliant with ASME B1.13M thread specifications, it meets stringent quality standards for industrial and institutional applications.

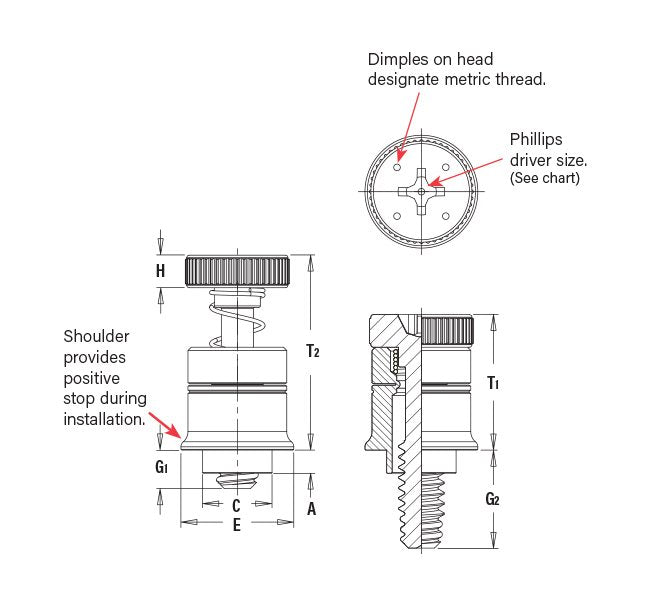

Product Specifications
Specifications A Shank Max
1.05 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C Max
4.73 mm
Specifications E 025
7.87 mm
Specifications Finish Retainer
Natural finish
Specifications Finish Screw
Bright nickel over copper flash
Specifications Finish Spring
Natural Finish
Specifications G1 064
1.02 mm
Specifications G2 064
5.33 mm
Specifications Hole Size In Sheet 013
4.75 mm
Specifications H 025
2.5 mm
Specifications Material Retainer
Aluminum
Specifications Material Screw
Heat-Treated Carbon Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Sheet Thickness
0.79 mm
Specifications Screw Length Code
0
Specifications T1 Nom
9.65 mm
Specifications T2 Nom
13.97 mm
Specifications Thread Code
M3
Specifications Thread Size
M3 x 0.5
Specifications Thread Specification
ASME B1.13M, 6g
Specifications Type
PF7MF
