Metric Captive Panel Screw Tool - SCBJ Type
Metric Captive Panel Screw Tool - SCBJ Type
SKU:PEM-705f7e
Securely fasten metal sheets with the Metric Captive Panel Screw Tool - SCBJ Type. M3 x 0.5 Thread, Heat-Treated Carbon Steel, Zinc Plated, #1 Phillips Driver.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Metric Captive Panel Screw Tool - SCBJ Type
$12.99
Quantity: 1
Claim Your Seller Account
Metric Captive Panel Screw Tool - SCBJ Type
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Captive Panel Screw Tool - SCBJ Type is a reliable solution for securely fastening metal sheets and panels. With a Thread Size x Pitch of M3 x 0.5 and a Min. Sheet Thickness of 1.02mm, this spinning clinch bolt ensures a tight and durable connection. Made from Heat-Treated Carbon Steel and finished with Zinc plating per ASTM B633, this tool meets stringent quality standards. The driver size of #1 Phillips makes installation convenient, while its compatibility with sheet hardness up to HRB 80 or HB 150 makes it versatile for various applications. Trust PennEngineering® (PEM®) for top-notch CAD Supplier quality.

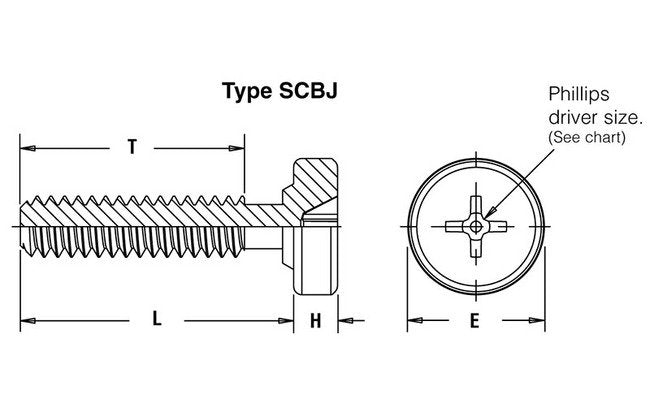

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
12 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
12
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
9.70 mm
