Metric Captive Panel Screw Tool - SCBJ Type
Metric Captive Panel Screw Tool - SCBJ Type
SKU:PEM-d50450
Securely fasten metal sheets with the Metric Captive Panel Screw Tool - SCBJ Type. ANSI/ASME compliant for durability and corrosion resistance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Metric Captive Panel Screw Tool - SCBJ Type
$14.99
Quantity: 1
Claim Your Seller Account
Metric Captive Panel Screw Tool - SCBJ Type
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Captive Panel Screw Tool offers a secure fastening solution for metal sheets and panels. With specifications compliant with ANSI/ASME standards, this tool features a thread size of M4 x 0.7, jacking type SCBJ, and heat-treated carbon steel construction for durability. It is zinc plated per ASTM B633 ensuring corrosion resistance. Perfect for sheet thicknesses of 1.02 mm, it meets stringent industry standards for reliability and performance.

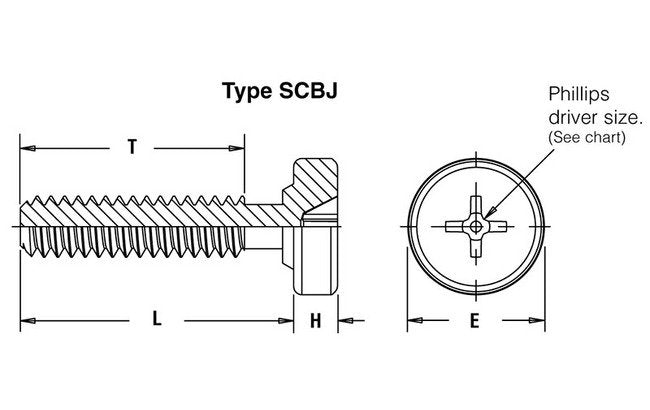

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#2 Phillips
Specifications E 025
8.28 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
4 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
14 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
5.00 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Screw Length Code
14
Specifications Thread Code
M4
Specifications Thread Size X Pitch
M4 x 0.7
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Jacking - SCBJ
Specifications T Nom
11.70 mm
