Metric Captive Panel Screw Tool - Spinning Clinch Bolt, SCBJ Type
Metric Captive Panel Screw Tool - Spinning Clinch Bolt, SCBJ Type
SKU:PEM-203333
Securely fasten metal sheets with the Metric Captive Panel Screw Tool - Spinning Clinch Bolt, SCBJ Type. M3 x 0.5 thread size, heat-treated carbon steel, ANSI/ASME B1.13M compliant.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Metric Captive Panel Screw Tool - Spinning Clinch Bolt, SCBJ Type
$12.99
Quantity: 1
Claim Your Seller Account
Metric Captive Panel Screw Tool - Spinning Clinch Bolt, SCBJ Type
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Captive Panel Screw Tool with Spinning Clinch Bolt, SCBJ Type, is a reliable fastening solution for metal sheets and panels. Featuring a M3 x 0.5 thread size, this non-jacking screw ensures secure attachment with a screw length of 14mm. Made of heat-treated carbon steel and zinc plated per ASTM B633 standards, it offers durability and corrosion resistance. Ideal for use in sheets with a hardness of HRB 80 or less, this screw complies with ANSI/ASME B1.13M standards, making it a trusted choice for various applications.

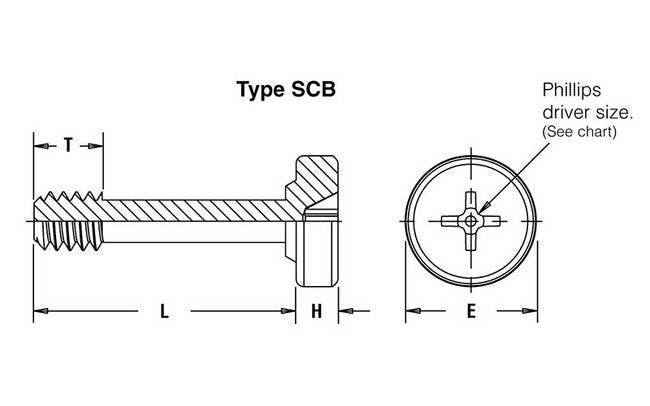

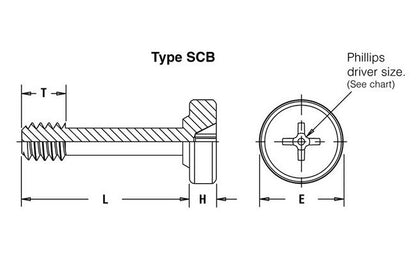

Product Specifications
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Driver Size
#1 Phillips
Specifications E 025
6.60 mm
Specifications Finish
Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
3 mm
Specifications H Nom
2.03 mm
Specifications L Length 04
14 mm
Specifications Material
Heat-Treated Carbon Steel
Specifications Min Dist Hole Cl To Edge
3.3 mm
Specifications Min Sheet Thickness
1.02 mm
Specifications Nom Axial Float
7.67 mm
Specifications Screw Length Code
14
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
Non-Jacking - SCB
Specifications T Nom
5.30 mm
