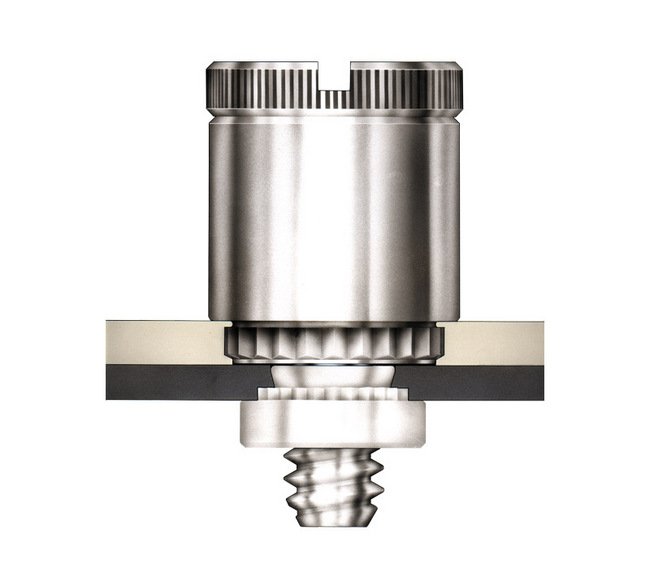

• Metric Captive Screws, Broaching for PC Boards - Type PFK - Image 1
  • Metric Captive Screws, Broaching for PC Boards - Type PFK - Image 2

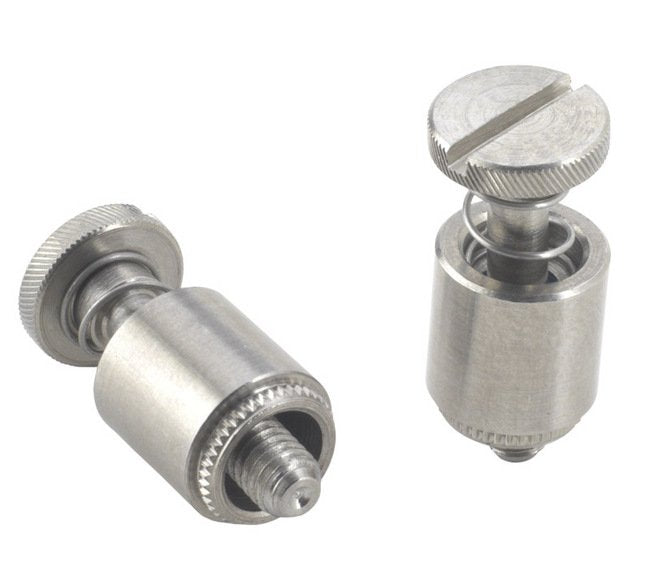

  • Metric Captive Screws, Broaching for PC Boards - Type PFK - Image 3
1 3
Hi-Tech Fasteners, Inc. →

Metric Captive Screws, Broaching for PC Boards - Type PFK

Metric Captive Screws, Broaching for PC Boards - Type PFK

PEM-61006f

Secure your PC boards with precision - Metric Captive Screws, Type PFK. M3 x 0.5 thread, ASTM A380 tested, ideal for HRB 70 or less. CAD by PennEngineering®.

$25.99
$25.99
Sale

Initiate Order

Metric Captive Screws, Broaching for PC Boards - Type PFK

Metric Captive Screws, Broaching for PC Boards - Type PFK

$25.99

Quantity: 1

Claim Your Seller Account

Metric Captive Screws, Broaching for PC Boards - Type PFK

Metric Captive Screws, Broaching for PC Boards - Type PFK

$25.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience secure fastening with our Metric Captive Screws, Broaching for PC Boards - Type PFK. These screws boast M3 x 0.5 thread size, 300 Series Stainless Steel construction, and ANSI/ASME B1.13M, 6g thread specification. Designed for sheet hardness HRB 70 or less, they are passivated and tested per ASTM A380 for superior corrosion resistance. Trust PennEngineering® (PEM®) for quality CAD solutions.

Product Specifications

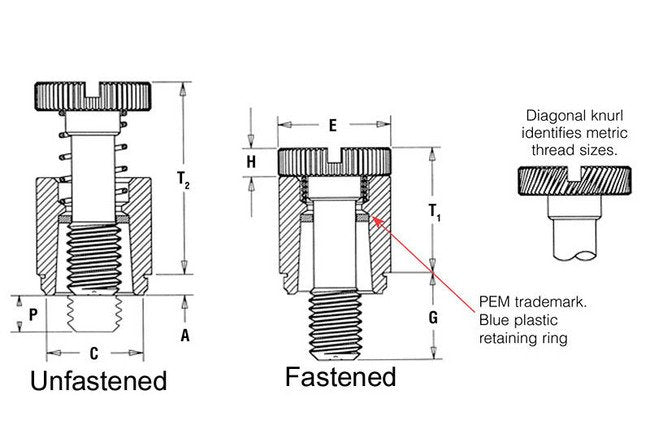

Specifications A Shank Max
1.53 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications Cad View
Unfastened
Specifications C 008
7.19 mm
Specifications E 025
7.92 mm
Specifications Finish Retainer
Passivated and/or tested per ASTM A380
Specifications Finish Screw
Passivated and/or tested per ASTM A380
Specifications Finish Spring
Natural Finish
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell “B” Scale) / HB 125 or Less (Hardness Brinell)
Specifications G 04
12.70 mm
Specifications Hole Size In Sheet 008
6.73 mm
Specifications H 013
1.83 mm
Specifications Material Retainer
300 Series Stainless Steel
Specifications Material Screw
300 Series Stainless Steel
Specifications Material Spring
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
5.08 mm
Specifications Min Sheet Thickness
1.53 mm
Specifications P 064
6.40 mm
Specifications Screw Length Code
84
Specifications T1 Max
9.14 mm
Specifications T2 Nom
13.72 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6g
Specifications Type
PFK
