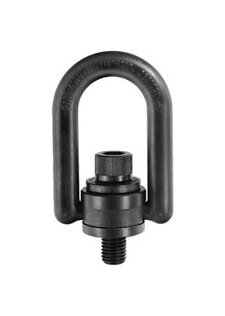

Metric Heavy Duty Hoist Rings
Metric Heavy Duty Hoist Rings
SKU:HOI-493a7c
Durable Metric Heavy Duty Hoist Rings for industrial lifting operations. Certified quality and high load ratings for maximum safety.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Metric Heavy Duty Hoist Rings
$399.99
Quantity: 1
Claim Your Seller Account
Metric Heavy Duty Hoist Rings
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Heavy Duty Hoist Rings are engineered to meet the rigorous standards of industrial applications. Crafted with precision from Forged Alloy Steel with a minimum tensile strength of 180,000 psi, these hoist rings are designed for maximum safety and durability. Featuring a 5:1 safety factor, 360° swivel, and 180° pivot, these hoist rings provide unparalleled performance. With a corrosion-resistant black oxide finish and certified heat treatment, these hoist rings ensure reliable operation. With load ratings up to 29762 pounds, these hoist rings guarantee secure lifting operations in diverse environments. Thread Size: M48x5, Thread Length: 80.00 mm, and Inside Clearance: 88.60 mm. Made in the US.
Product Specifications
Specifications A Radius
50.80 mm
Specifications B Base Height
72.90 mm
Specifications Country Of Origin
US
Specifications C Ring Width
171.50 mm
Specifications D Diameter
31.80 mm
Specifications E Thread Length
80.00 mm
Specifications Finish
Black Oxide
Specifications F Height
234.20 mm
Specifications G Thread Size
M48x5
Specifications H Inside Clearance
88.60 mm
Specifications J Base Width
98.50 mm
Specifications Material
Forged Alloy
Specifications Pivot
180 º
Specifications Ps Load Rated
29762 Pounds (13500 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Torque
1085.50 N·m
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
10.59 kg
