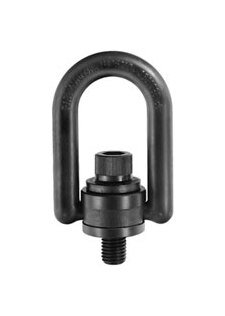

Metric Heavy Duty Hoist Rings
Metric Heavy Duty Hoist Rings
SKU:HOI-04b00c
Reliable Metric Heavy Duty Hoist Rings for industrial lifting with forged alloy steel, 180,000 psi tensile strength, and 360° swivel.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Metric Heavy Duty Hoist Rings
$89.99
Quantity: 1
Claim Your Seller Account
Metric Heavy Duty Hoist Rings
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Metric Heavy Duty Hoist Rings are designed to meet the rigorous demands of industrial applications. Made from forged alloy steel with a minimum tensile strength of 180,000 psi, these hoist rings undergo certified heat treatment and 100% Magnaflux inspection for top-notch quality assurance. Featuring a black oxide finish for corrosion resistance, they are designed with a 5:1 safety factor to ensure maximum safety. With a 360° swivel and 180° pivot capability, these hoist rings provide versatility in various lifting operations. Ideal for heavy-duty lifting tasks, these metric hoist rings are a reliable choice for industrial applications.
Product Specifications
Specifications A Radius
25.40 mm
Specifications B Base Height
38.10 mm
Specifications Country Of Origin
US
Specifications C Ring Width
88.90 mm
Specifications D Diameter
19.10 mm
Specifications E Thread Length
38.00 mm
Specifications Finish
Black Oxide
Specifications F Height
174.60 mm
Specifications G Thread Size
M20x2.5
Specifications H Inside Clearance
98.40 mm
Specifications J Base Width
48.00 mm
Specifications Material
Forged Alloy
Specifications Pivot
180 º
Specifications Ps Load Rated
4850 Pounds (2200 kg)
Specifications Safety Factor Min
5:1
Specifications Swivel
360 º
Specifications Torque
135.00 N·m
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.07 kg
