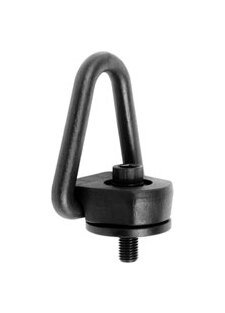

Metric Heavy Duty Side Pull Hoist Ring
Metric Heavy Duty Side Pull Hoist Ring
SKU:HOI-85839b
Enhance lifting operations with our reliable Metric Heavy Duty Side Pull Hoist Ring. Self-aligning, 360° rotation, and secure hold for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Metric Heavy Duty Side Pull Hoist Ring
$59.99
Quantity: 1
Claim Your Seller Account
Metric Heavy Duty Side Pull Hoist Ring
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your lifting operations with our Metric Heavy Duty Side Pull Hoist Ring. Engineered to the highest standards, this hoist ring is self-aligning in the direction of the load, rotates 360°, and provides a secure hold. Crafted from Alloy Steel with a durable Black Oxide finish, it ensures reliability with a load capacity of 882 Pounds (400 kg). The unit is supplied as one whole piece to prevent part loss, making it ideal for industrial applications requiring precision and strength.
Product Specifications
Specifications A Radius
19.00 mm
Specifications B Base Height
34.00 mm
Specifications D Diameter
13.00 mm
Specifications E Thread Length
14.00 mm
Specifications Finish
Black Oxide
Specifications F Height
120.00 mm
Specifications G Thread Size
M8x1.25
Specifications H1 Inside Clearance
81.00 mm
Specifications H Inside Clearance
73.00 mm
Specifications I Overall Width
99.00 mm
Specifications J Base Width
56.00 mm
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
882 Pounds (400 kg)
Specifications Swivel
360 º
Specifications Torque
9.50 N·m
Specifications V Center Line 1
32.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.93 kg
Specifications W Center Line 2
130.00 mm
