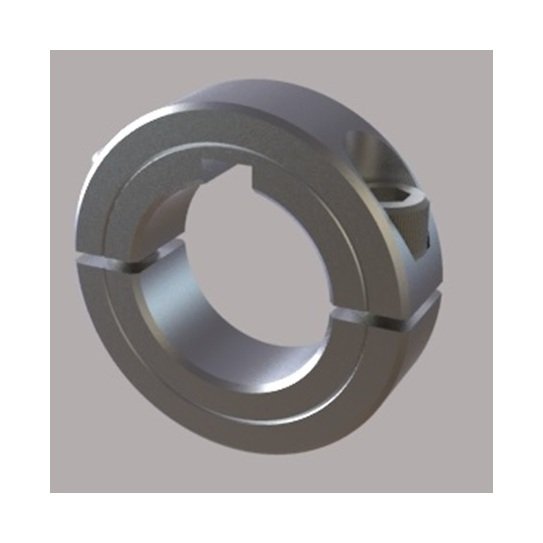

Metric Heavy Duty Split Collars with Keyway - 14mm
Metric Heavy Duty Split Collars with Keyway - 14mm
SKU:ROU-0d12f9
Enhanced Metric Heavy Duty Collars for precise shaft protection and secure holding
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Metric Heavy Duty Split Collars with Keyway - 14mm
$24.99
Quantity: 1
Claim Your Seller Account
Metric Heavy Duty Split Collars with Keyway - 14mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Heavy Duty Two-Piece Split Collars with Keyway offer superior flexibility and durability for institutional and consumer applications. These collars feature a fully metric design, precision machining, and larger clamp screws for exceptional holding power. Whether used on standard round shafts, thin wall tubes, or split hubs, these collars protect shafts from damage and can be easily repositioned. Available in both steel and stainless steel, they ensure reliability and high clamping pressure. This product is RoHS2 and REACH compliant, meeting stringent quality and environmental standards.
Product Specifications
Dimensional Attributes Bore Size
14 mm
Dimensional Attributes Keyway
5 mm
Dimensional Attributes Outside Diameter
36 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x .8 x 16MM
Dimensional Attributes Width
14 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.17 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2LM014HDK
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Heavy Duty
Specifications Upc Code
662786044540
