Metric Hinge Shaft Collars - Stafford Signature Series

Name: Metric Hinge Shaft Collars - Stafford Signature Series
Brand: Stafford Manufacturing Corp.
SKU: ROU-eb2203
Price: 79.31 USD
Availability: OutOfStock

SKU:ROU-eb2203

Discover Stafford's exclusive Metric Hinge Shaft Collars: fully metric design, triple-link hinge, easy assembly, and smooth bore protection. Stocked in steel and stainless steel for reliability.

$79.31

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

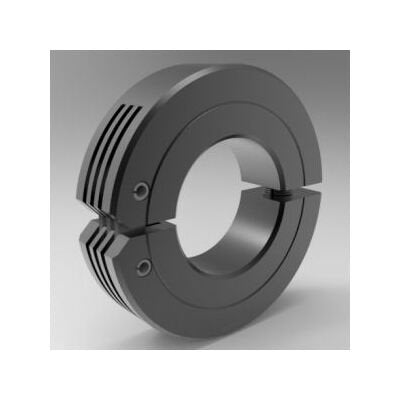

The Metric Shaft Collars Hinge Type from Stafford are precision-engineered with a fully metric design, including clamp screws, for seamless assembly on shafts. Featuring a triple-link hinge and captive screw, this exclusive Hinge Collar combines the flexibility of a two-piece collar with the simplicity of a one-piece unit. Ideal for fast operation in challenging environments, it offers the same axial holding power as conventional collars while safeguarding shafts with its smooth bore. Stocked in steel and stainless steel, these collars ensure durable and efficient performance.

Product Specifications

Dimensional Attributes Bore Size

18 mm

Dimensional Attributes Outside Diameter

36 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

M5 x .8 x 16MM

Dimensional Attributes Width

13 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.15 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

79.31 USD

Specifications Material

Steel

Specifications Part Number

2LM018H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786019906
