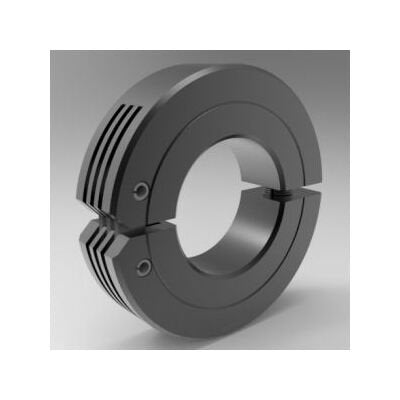

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

SKU:ROU-d20e99

Stafford's Metric Hinge Shaft Collars - Perfect blend of flexibility and simplicity for quick assembly and reliability on round shafts. Steel, 14mm Bore.

Regular price $19.99
Regular price Sale price $19.99
Sale

Initiate Order

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

$19.99

Quantity: 1

Claim Your Seller Account

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

Metric Hinge Shaft Collars - Steel, Low Profile, 14mm Bore

$19.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Stafford's Metric Hinge Shaft Collars offer the perfect blend of flexibility and simplicity, featuring a triple-link hinge design and captive screw for quick operation. These fully metric collars, made of durable 1215 alloy steel with a black oxide finish, ensure easy assembly and repositioning without loose screws. With a smooth bore to protect shafts, these collars provide reliable axial holding power on round shafts, tubes, or split hubs. Ideal for fast-paced environments, Stafford's Hinge Shaft Collars are stocked in both steel and stainless steel, meeting RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Bore Size
14 mm
Dimensional Attributes Outside Diameter
30 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
M4 x .7 x 16MM
Dimensional Attributes Width
11 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.09 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2LM014H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786019876
