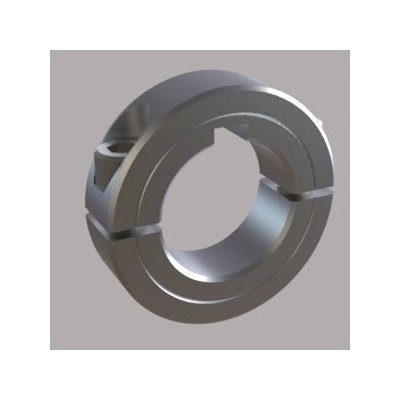

Metric Keyed Weldable Shaft Collar, 65mm Bore
Metric Keyed Weldable Shaft Collar, 65mm Bore
SKU:ROU-873766
Precision-machined Metric Keyed Weldable Shaft Collar with 1018 steel construction, ideal for safe and secure shaft positioning in industrial settings.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Metric Keyed Weldable Shaft Collar, 65mm Bore
$59.99
Quantity: 1
Claim Your Seller Account
Metric Keyed Weldable Shaft Collar, 65mm Bore
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Metric Two-Piece Split Weldable Shaft Collar is precision-machined from 1018 steel, lead-free for safe welding. It offers superior holding power over set-screw collars, with fully metric specifications and keyways for precise shaft positioning. Easy to adjust, this collar protects shafts while providing high clamping power for industrial applications.
Product Specifications
Dimensional Attributes Bore Size
65 mm
Dimensional Attributes Keyway
18 mm
Dimensional Attributes Outside Diameter
93 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M8 x 1.25 x 25MM
Dimensional Attributes Width
19 mm
Specifications Alloy
1018
Specifications Approximate Weight
1.11 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2MWM065K
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786042294
