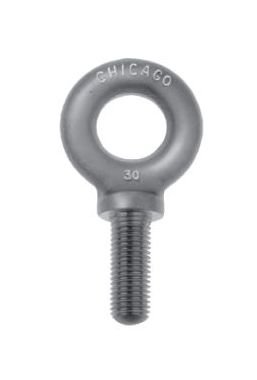

Metric Machinery Eye Bolts - Carbon Steel - Self-Colored - Shoulder Pattern
Metric Machinery Eye Bolts - Carbon Steel - Self-Colored - Shoulder Pattern
SKU:WIR-df0eed
Premium Metric Machinery Eye Bolts forged from durable Carbon Steel, ideal for secure wire rope attachment. Available in various sizes and with high WLL.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Metric Machinery Eye Bolts - Carbon Steel - Self-Colored - Shoulder Pattern
$289.99
Quantity: 1
Claim Your Seller Account
Metric Machinery Eye Bolts - Carbon Steel - Self-Colored - Shoulder Pattern
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your wire rope assemblies with these high-quality Metric Machinery Eye Bolts forged from Carbon Steel and self-colored for durability. Designed with a shoulder pattern, these bolts ensure secure attachment and reliable performance. With a Metric Size of M18 and a Thread Size of M18 x 2.5, these bolts feature a 51mm Shank Length, 38mm I.D. Eye, and a Working Load Limit (WLL) of 2,140 kgs (4,708 lbs). Made in the USA by Chicago Hardware & Fixture Company.
Product Specifications
Specifications Id Eye Mm
38
Specifications Metric Size
M18
Specifications Shank Length Mm
51
Specifications Thread Size
M18 x 2.5
Specifications Wll Kgs
2,140
Specifications Wll Lbs
4,708
Specifications Wt Per 100 Pcs Lbs
104
CAGE
0T9L4
NAICS
332722
PSC
5306
