Metric N10 Self-Clinching Receptacle Nuts

Name: Metric N10 Self-Clinching Receptacle Nuts
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-2129b8
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-2129b8

Securely fasten metal sheets with precision using Metric N10 Self-Clinching Receptacle Nuts. Heat-treated carbon steel, zinc-plated for durability. ANSI/ASME B1.13M compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

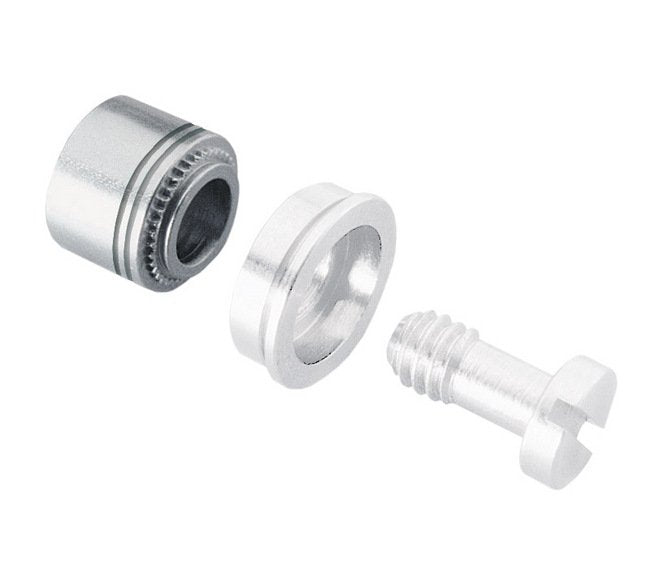

The Metric N10 Self-Clinching Receptacle Nuts are precision-engineered for secure fastening in metal sheets and panels. Featuring M3 x 0.5 thread size, heat-treated carbon steel construction, and zinc plating per ASTM B633, these nuts ensure reliable performance in demanding environments with sheet hardness up to HRB 80 or HB 150. Meeting ANSI/ASME B1.13M thread specifications, they offer a shank diameter of 0.97mm, ideal for sheet thicknesses of 1 mm and hole size in sheet of 4.75 mm. Trust in the quality and compliance of PennEngineering® (PEM®) products for your industrial needs.

Product Specifications

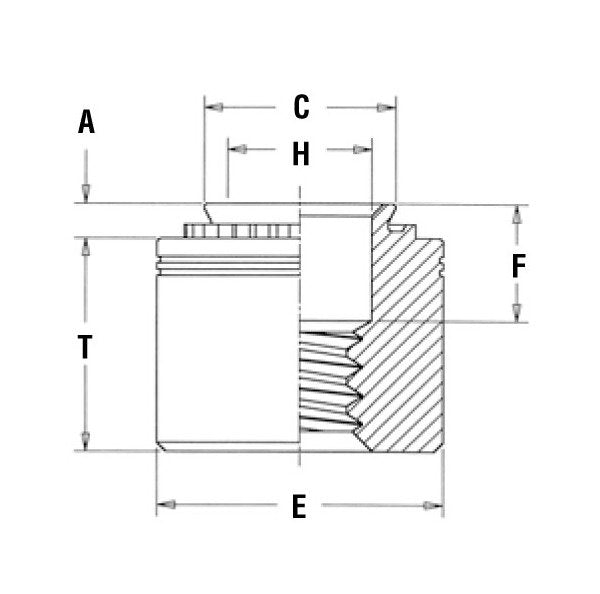

Specifications A Shank Max

0.97 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

4.73 mm

Specifications E Nom

7.11 mm

Specifications Finish

Zinc plated per ASTM B633, SC1 (5Âµm), Type III, colorless

Specifications For Use In Sheet Hardness

HRB 80 or Less (Hardness Rockwell âBâ Scale) / HB 150 or Less (Hardness Brinell)

Specifications F 025

3.30 mm

Specifications Hole Size In Sheet 008

4.75 mm

Specifications H Nom

3.20 mm

Specifications Material

Heat-Treated Carbon Steel

Specifications Min Dist Hole Cl To Edge

5.59 mm

Specifications Min Sheet Thickness

1 mm

Specifications Shank Code

Specifications Thread Code

Specifications Thread Size X Pitch

M3 x 0.5

Specifications Thread Specification

ANSI/ASME B1.13M, 6H

Specifications Type

N10

Specifications T 013

6 mm

Metric N10 Self-Clinching Receptacle Nuts
