Metric Paralle Male Stud Coupling with O-Ring and Washer - DIN 2353 Compression Fittings

Name: Metric Paralle Male Stud Coupling with O-Ring and Washer - DIN 2353 Compression Fittings
Brand: World Wide Metric, Inc.
SKU: FIT-9334b8
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-9334b8

High-quality Metric Paralle Male Stud Coupling with O-Ring and Washer for light-duty applications, DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Metric Paralle Male Stud Coupling with O-Ring and Washer is designed for light-duty applications with a pressure rating of 315 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. With a tube diameter of 8.0 mm and M-thread size of 12x1.5, it meets DIN 2353 standards, making it ideal for various industrial settings.

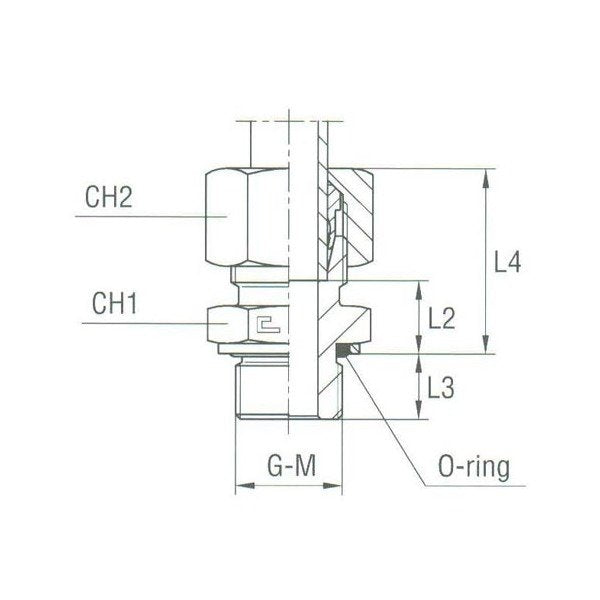

Product Specifications

Specifications Ch1

17.0 mm

Specifications Ch2

17.0 mm

Specifications L2

9.9 mm

Specifications L3

9.6 mm

Specifications L4

24.9 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

12x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Category 6

Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
