Metric Parallel Female Non Return Valve
Metric Parallel Female Non Return Valve
SKU:FIT-ba9956
High-performance Metric Parallel Non Return Valve for reliable flow control in heavy-duty applications. Pressure: 400 bar. Size: 10x1 M-thread.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Metric Parallel Female Non Return Valve
$29.99
Quantity: 1
Claim Your Seller Account
Metric Parallel Female Non Return Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

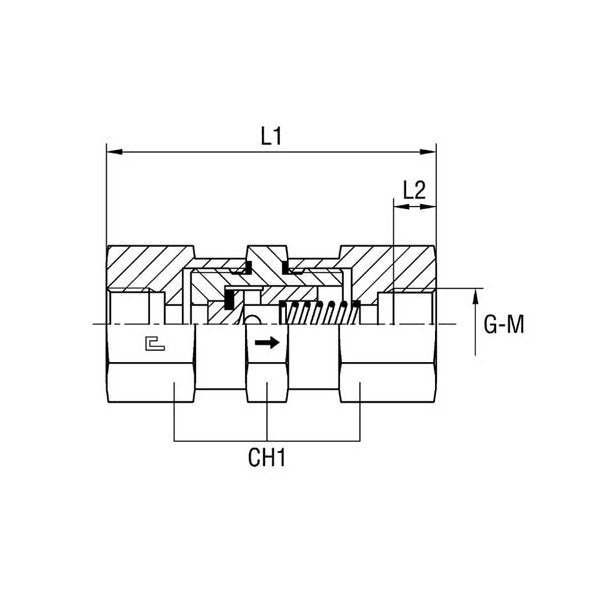

The Metric Parallel Female Non Return Valve is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Constructed from durable carbon steel, this valve features a 10x1 M-thread size, a compact design with dimensions of 70mm (L1) x 10.0mm (L2), a 19.0mm CH1, and a 4mm diameter pass. Ensure reliable flow control and prevent backflow efficiently with this high-performance hydraulic check valve.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L1
70 mm
Specifications L2
10.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
10x1
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
